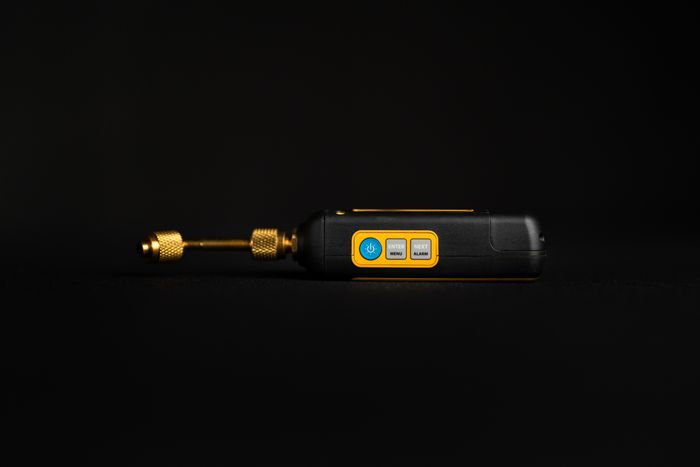

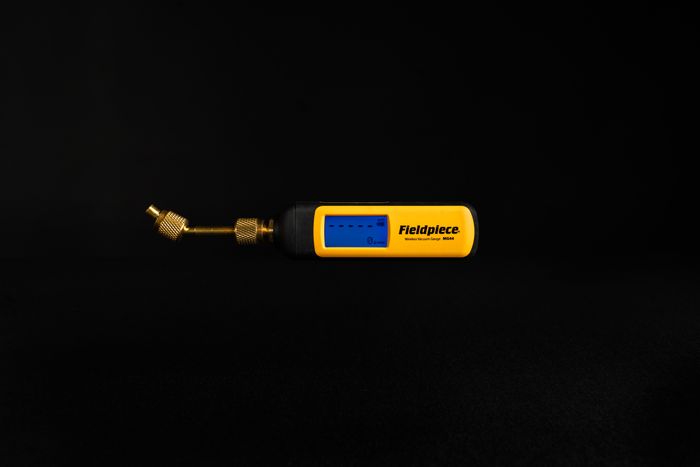

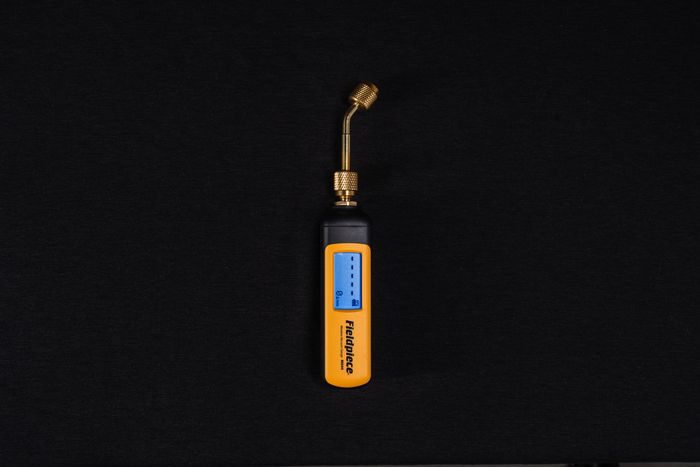

Wireless Vacuum Gauge
)
)
)
- Connector type: 1/4” SAE male fitting
- Accuracy: ±(5% of reading + 5 microns) at 25°C, 50 to 2000 microns
- Range and Units: 50 to 25000 microns of mercury (English), 6 to 3333 Pascals (Metric), 0.06 to 33.33 mBar (Metric), 50 to 25000 mTorr (Metric), 0.05 to 25 Torr (Metric, equivalent to mmHg)
- Best Resolution: 1 micron of mercury (below 2000 microns), 1 Pascal (below 250 Pascals), 0.001 mBar (below 2.5 mBar), 1 mTorr (below 2000 mTorr), 0.001 Torr (below 2.5 Torr, equivalent to mmHg)
- Battery Type: 2 x AA Alkaline, NEDA 15A, JIS UM3, IEC LR6
- Battery Life: 40 hours typical alkaline
- Auto Power Off: 15 minutes default (APO adjustable)
- Wireless Range: 300 meters line of sight. Obstructions affect distance.
- Radio Frequency: 2.4 GHz
- Water Resistance: IP54
- Operating Environment: -10°C to 50°C at <75% RH
- Storage Temperature: -20°C to 60°C at <80% RH (with batteries removed)
- Weight: 300 g
