VLo Ultra-12 Low Build System
)
)
)
)

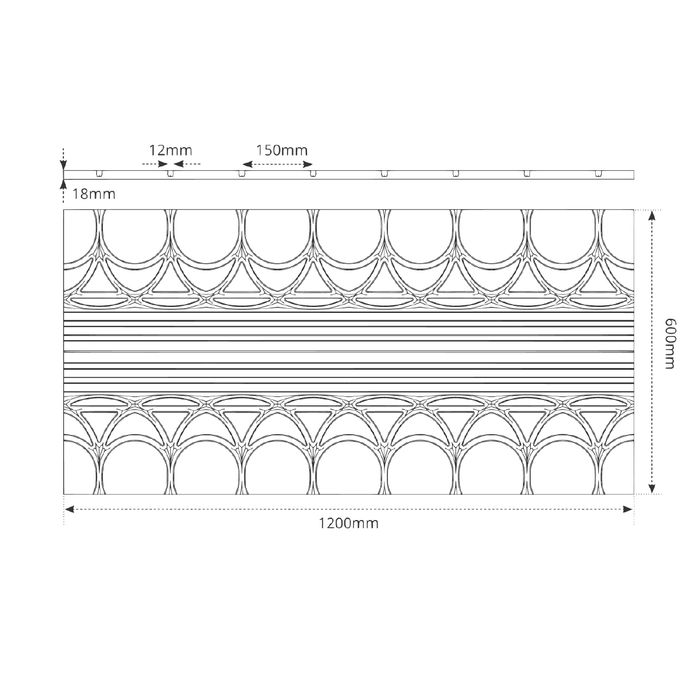

With its ultra-low-profile design that adds only 18mm to the floor build up, the VLo Ultra-12 Low Build System is an ideal hydronic underfloor heating system for both renovation projects and off-plan installations.

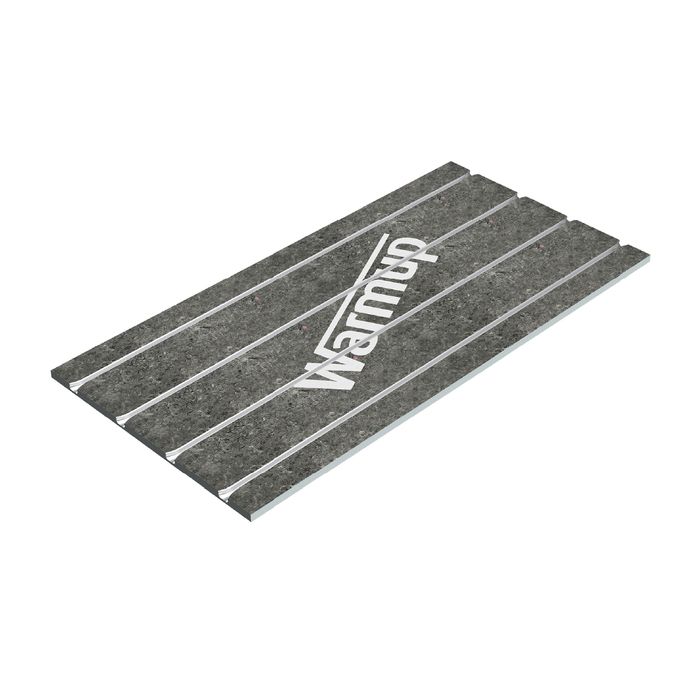

The system utilises dedicated heating, end, service and plain panels, allowing for installation in rooms of any shape or size. The panels are lightweight and robust, making them easy to transport and fit.
With an impressive 35% higher heat output than standard systems, Ultra-12 produces 100 W/m² in a 20° C room with tiled floors using water heated to just 35°C – far more efficient than comparable models on the market. It features a 150μm aluminium diffuser alongside a recycled fleece decoupling layer on the underside, removing the need for separate membranes.

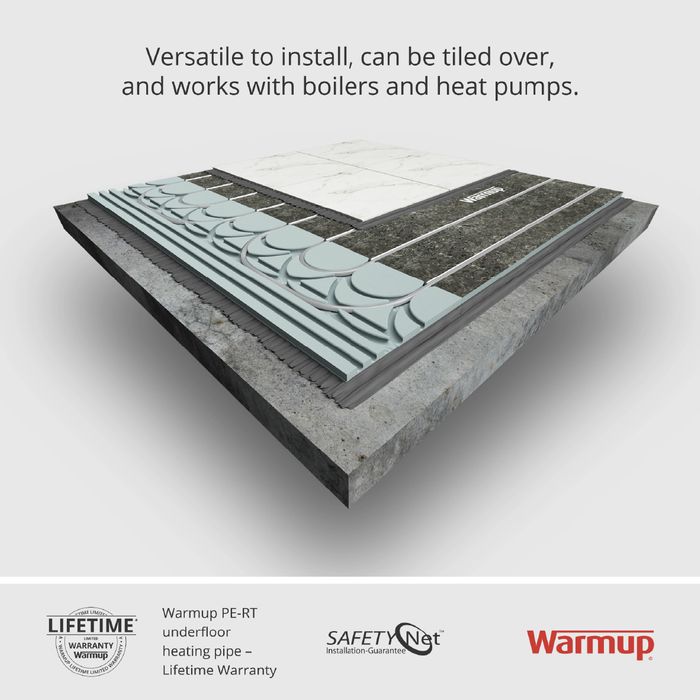

Once installed, a variety of floor finishes can be laid over the system including tiles which can be bonded directly to the Ultra-12 without the need for primer. Ultra-12 uses Warmup’s new and improved 12mm PE-RT heating pipe and can work with both traditional boilers and heat pumps.
