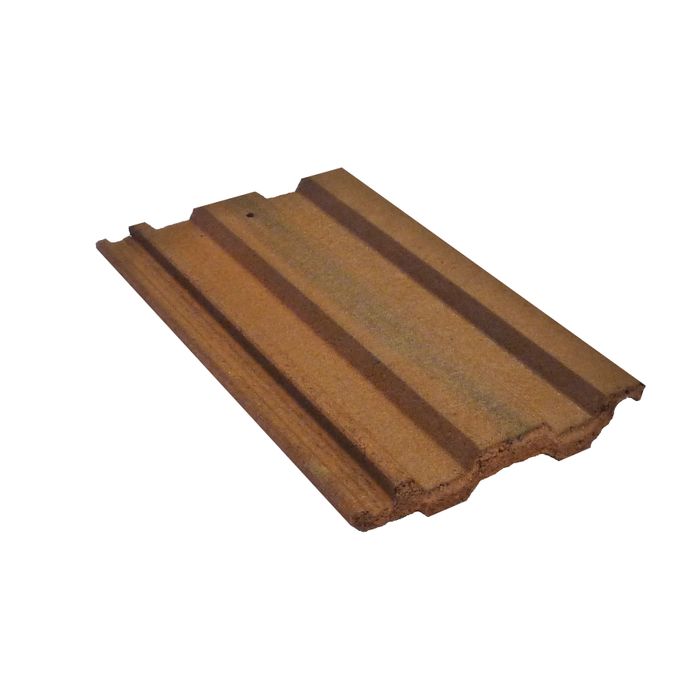

V2 Concrete Roof Tiles
)
)
)
)
The FP McCann V2 Concrete Roof Tile is a robust interlocking concrete tile designed to deliver dependable performance across a wide range of roofing applications.
Featuring a classic 15×9 format, the V2 tile provides a familiar aesthetic that fits seamlessly within traditional roofscapes while maintaining the efficiency of a modern interlocking system. It is particularly suited to new build and re-roofing projects where a practical, cost-effective solution is required.
The interlocking design allows for quick and efficient installation, helping to reduce labour time and overall project costs. Manufactured using high-quality concrete, the V2 tile ensures consistent performance, durability, and resistance to the UK’s demanding weather conditions, making it a reliable long-term roofing solution.
Key Features & Benefits
- Traditional profile: Classic 15×9 format for a familiar and versatile appearance
- Interlocking design: Provides secure, weather-tight performance and efficient installation
- Cost-effective solution: Ideal for projects requiring value without compromising quality
- Durable concrete construction: Built to withstand wind, rain, and frost conditions
- Consistent finish: Machine-manufactured for accuracy and uniformity
- Versatile application: Suitable for both new build and refurbishment projects

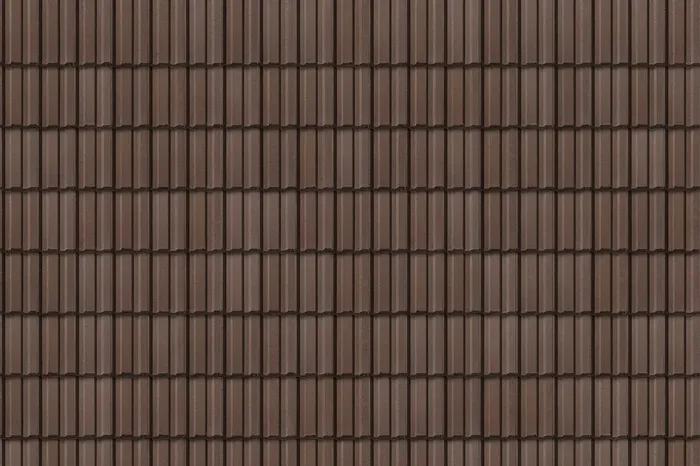

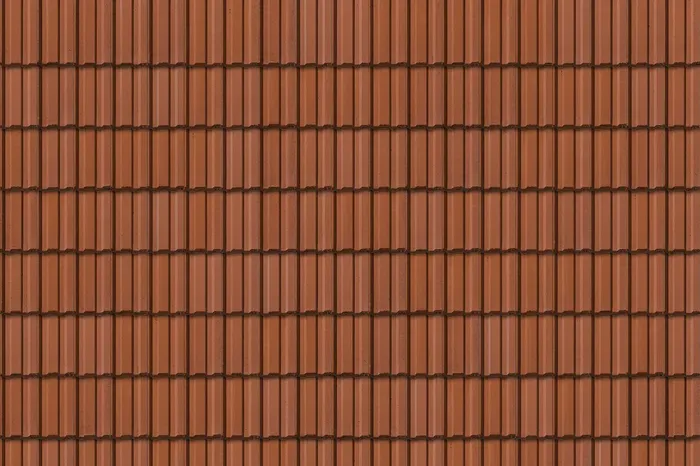

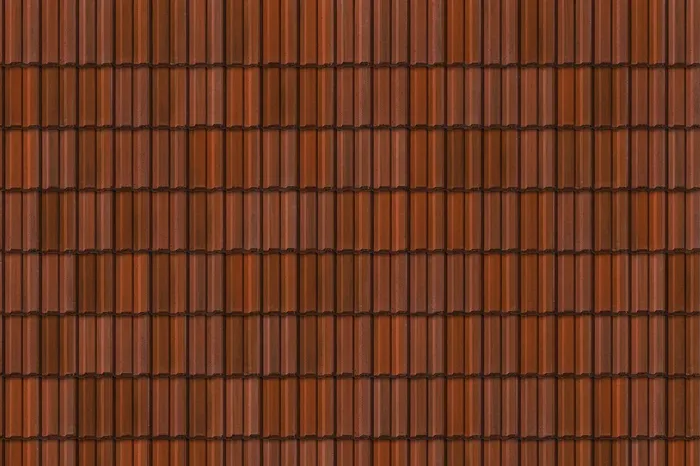

- Range of colours: Available in options such as Brown, Red, Autumn, and Slate Grey
Specifications
- Material: Concrete
- Tile size: Approx. 385mm x 230mm
- Weight per tile: Approx. 2.95kg
- Cover width: Approx. 200mm
- Minimum headlap: 75mm
- Minimum pitch:
- 17.5° (100mm headlap)
- Up to 70° (75mm headlap)
- Covering capacity:
- ~16.13 tiles/m² (75mm headlap)
- ~17.54 tiles/m² (100mm headlap)
- Weight of tiling:
- ~47.6kg/m² (75mm headlap)
- ~51.8kg/m² (100mm headlap)
Applications
Ideal for use in:
- Residential new build housing developments
- Roof refurbishment and re-roofing projects
- Traditional and suburban housing schemes
- Pitched roofs requiring a cost-effective, reliable solution
- Projects needing consistent supply and installation efficiency
The FP McCann V2 Concrete Roof Tile combines traditional styling with modern interlocking performance, offering a practical and economical roofing solution for a wide variety of residential and construction projects.
