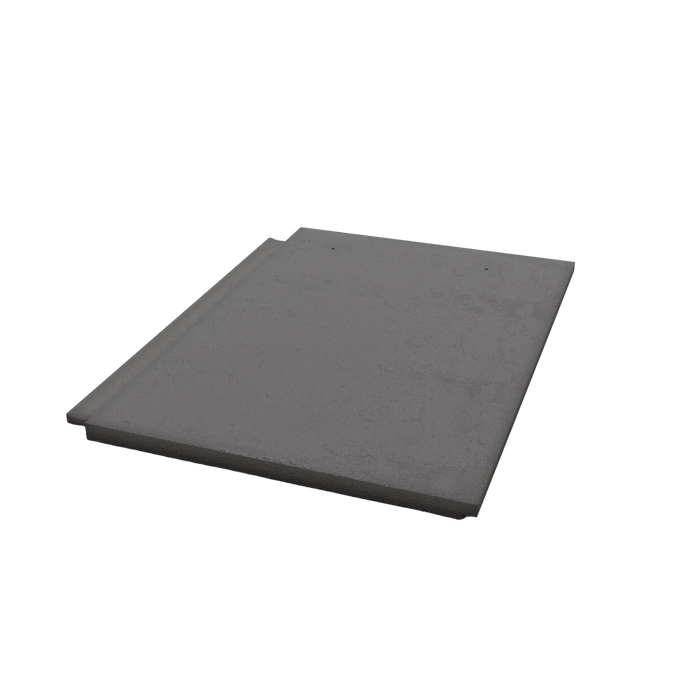

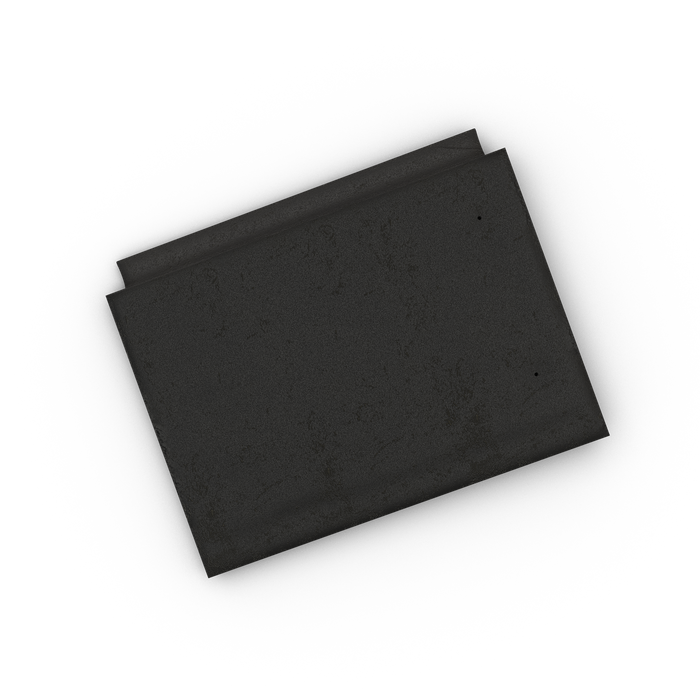

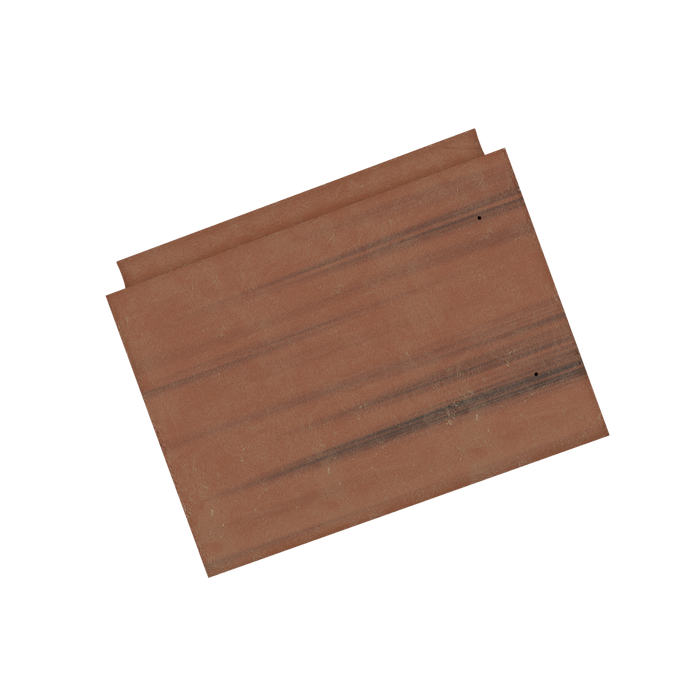

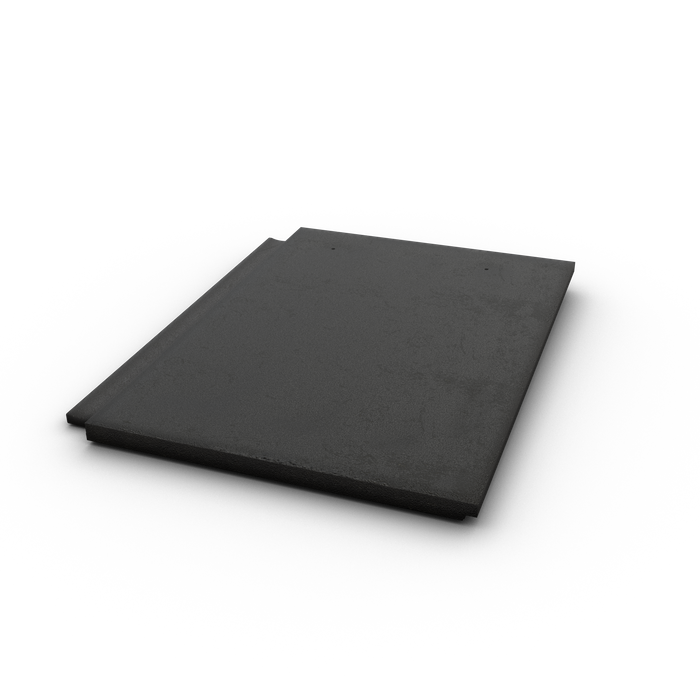

Thin Flat Concrete Roof Tile
)
)
)
)
The FP McCann Thin Flat Roof Tile is a modern interlocking concrete tile designed to replicate the appearance of natural slate while offering the practical benefits of a contemporary roofing system.
With its thin leading edge and flat profile, this tile creates a refined, smooth roof finish that complements both traditional and modern architectural styles. When laid in a half-bonded pattern, it provides an authentic slate-effect aesthetic without the cost and complexity of natural materials.
The interlocking design allows for single-lap installation, reducing the number of tiles required per square metre and helping to improve installation speed and efficiency. This makes the Thin Flat tile a cost-effective solution for both new build and refurbishment projects.
Manufactured from high-quality concrete, the tile delivers excellent durability and resistance to harsh weather conditions, ensuring a robust, long-lasting roofing system with minimal maintenance requirements.
Key Features & Benefits
- Slate-effect appearance: Replicates the look of natural slate for a premium finish
- Thin leading edge: Creates a sleek, low-profile and modern roofline
- Interlocking design: Provides a secure, weather-tight and efficient roofing system
- Reduced installation time: Single-lap fixing lowers labour requirements and costs
- Durable concrete construction: Built for long-term performance in demanding weather conditions
- Consistent quality: Machine-manufactured for accuracy and reliability
- Versatile design: Suitable for a wide range of residential and commercial applications
Specifications
- Material: Concrete
- Tile size: Approx. 420mm x 334mm
- Thickness: Approx. 21mm
- Weight per tile: Approx. 4.7kg
- Cover width: Approx. 305mm
- Minimum headlap: 75mm
- Minimum pitch:
- 22.5° (75mm headlap)
- 17.5° (100mm headlap)
- Maximum gauge: Approx. 345mm
- Covering capacity:
- ~9.7 tiles/m² (75mm headlap)
- ~10.5 tiles/m² (100mm headlap)
Applications
Ideal for use in:
- Residential new builds and housing developments
- Re-roofing and refurbishment projects
- Contemporary designs requiring a flat, clean roofline
- Traditional builds needing a slate-effect finish
- Pitched roofing systems in domestic and commercial settings
The FP McCann Thin Flat Roof Tile combines modern aesthetics, efficient installation, and proven durability, making it a reliable and cost-effective alternative to traditional slate roofing.
