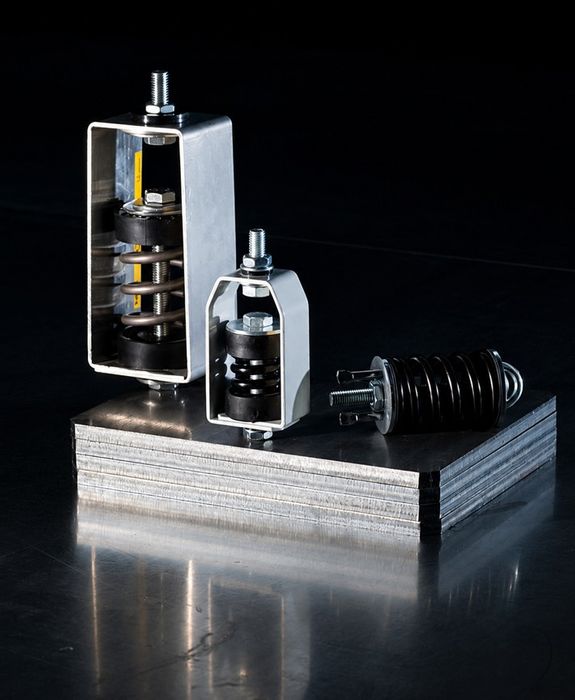

Spring Hangers
)
)
The Spring Hangers range is designed for the vibration isolation of suspended units, fans, pipes and technical services installed with tie rods or hanging supports. These anti-vibration hangers help reduce the transmission of vibrations and structure-borne noise from suspended mechanical systems to the surrounding building structure.
Each hanger features a sandblasted steel structure protected by cataphoretic treatment and finished with epoxy powder coating. The internal spring is made of harmonic steel according to UNI EN 10270-1 SH and is also protected by cataphoretic treatment, while the galvanised steel screws are dimensioned according to the load requirements shown in the product table.
The range includes several series, such as N, NG, NGSP2, NMN, NMNa, NMNT and T, allowing selection according to the type of suspended installation, required load capacity and fixing configuration.

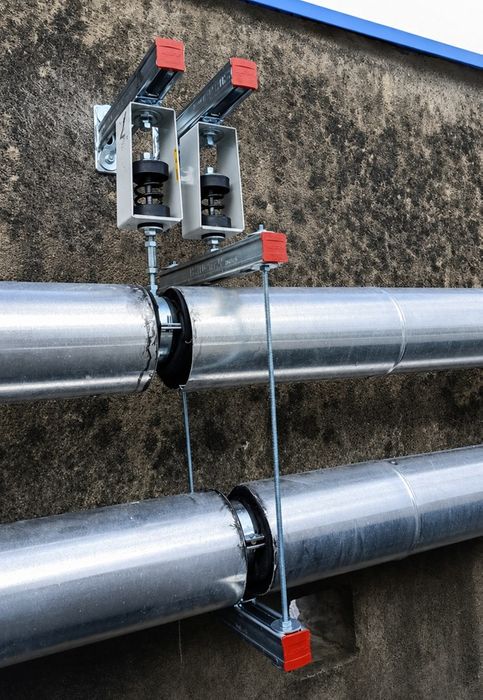

On request, Spring Hangers can be supplied with special coatings, stainless steel components for specific environments, and eyebolts from M8 to M20 for connecting the tie rod to the fixed point. This makes the range suitable for HVAC systems, ventilation units, suspended pipework and industrial installations requiring effective vibration isolation and long-term reliability.
