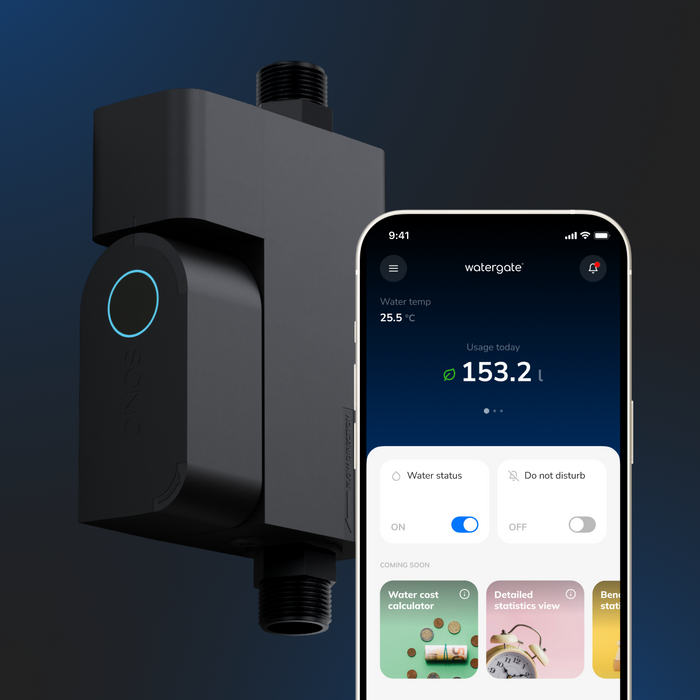

Sonic by Watergate
)
)
)
)

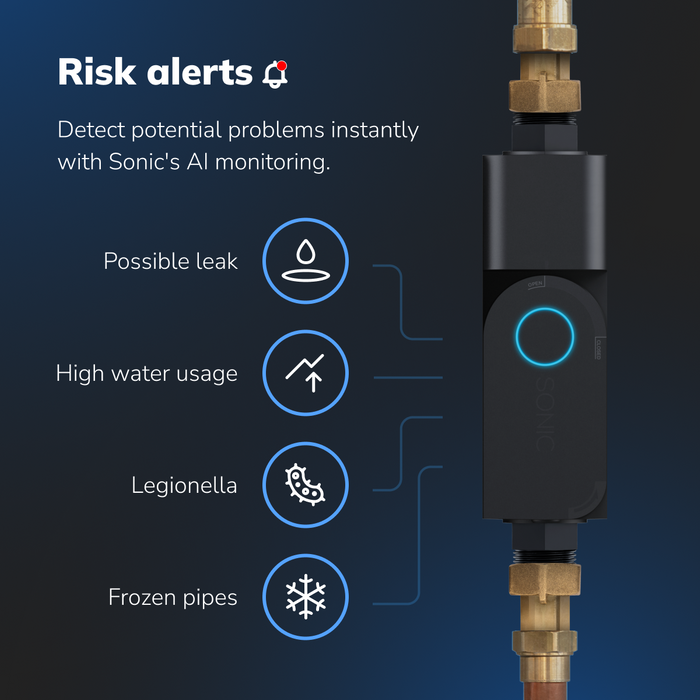

Watergate is an AI-powered water management system that detects potential leaks of all sizes, from burst pipes to dripping taps, saving you from costly damage.

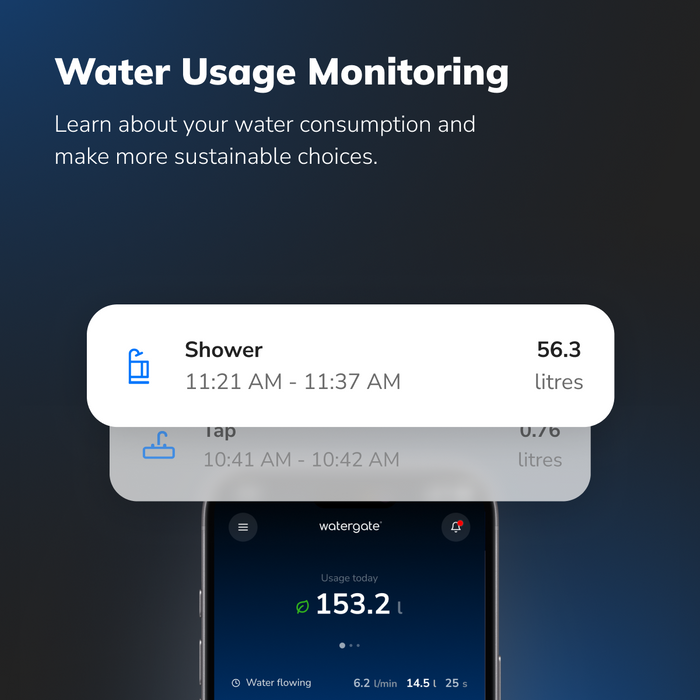

Our award-winning technology monitors your water supply 24/7, tracks usage and costs, and provides real-time alerts or automatic shutoff to prevent damage quickly.
What’s in the box
- Watergate Sonic Valve 2.0 (WA01A A-01)
- Power supply unit, 180 cm (US Plug with UK/EU adapter included dependent on location)
- Product Manual
Installation Guidance
- BSP Parallel 3/4” male thread (on Sonic Valve)
- Minimum space required to install: 25 cm (L) x 10 cm (W) x 18 cm (D)
- Compatible with pipe sizes up to 28 mm
- Can be installed vertically/horizontally
- Max fixating torque 10 N·m
- PTFE thread should NOT be used
Installation Environment
- Indoor installation only (0°C to ~40°C environment)
- Water temperature: 0-70°C
- Sonic supports up to 10 bar water pressure
- Install after main stop valve
Power & Connectivity
- AC-DC Power: Input 100 – 240 V, Output 7.5 Vdc
- Battery compatible (recommended as a backup only) – 4 x Lithium-ion AA Batteries
- Wi-Fi connection required (802.11 b/g/n @ 2.4 Ghz)
- Smart app compatible with most Apple/Android devices
Sensors
- Water Temperature Sensor
- Ambient Temperature Sensor
- Ultrasonic Flow Sensor
Certificates
- WRAS Certified (2305037)
- FCC Certified
- CE Certified
- PZH Certified (B.BK.60110.1321.2023)
