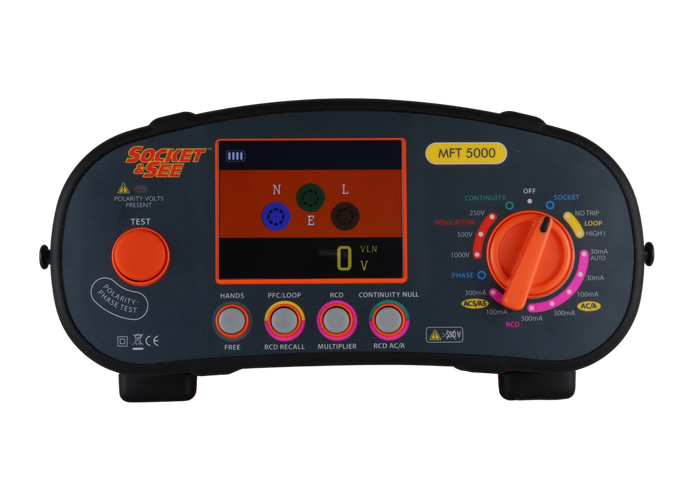

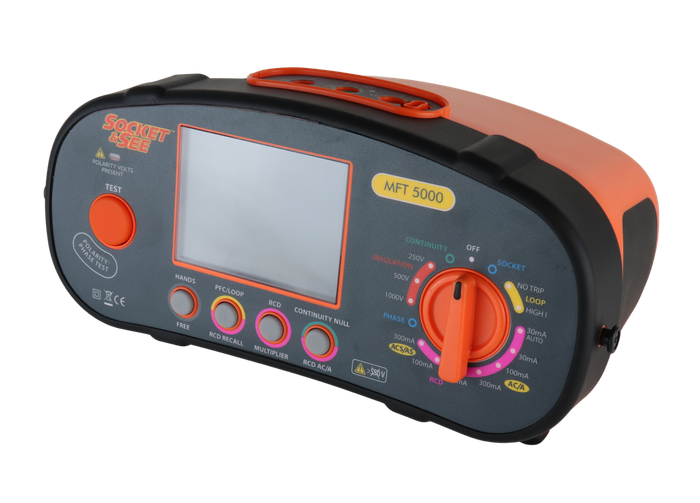

Socket & See MFT5000 Multifunction Tester
)
)
)
)
The Socket & See MFT5000 Multifunction Tester is a high-performance 18th Edition multifunction tester engineered to provide electricians and electrical contractors with a complete, reliable, and easy-to-use testing solution. Designed for professional use across residential, commercial, and industrial environments, the MFT5000 combines a wide range of essential electrical testing functions into one compact and durable device.
Featuring a bright full-colour backlit display and colour-coded fascia for enhanced usability, the MFT5000 is built to deliver excellent visibility and straightforward operation in all working conditions. The tester also offers customisable splash screens, allowing users to personalise the device with company branding, contact details, or logos for a more professional appearance.
The MFT5000 supports selectable insulation resistance testing ranges of 250V, 500V, and 1000V, making it suitable for a broad range of installation testing applications. Its advanced loop testing capabilities include both high-current 2-wire testing and No Trip 3-wire testing, enabling accurate Line-Neutral and Line-Earth loop impedance measurements while preventing unwanted RCD tripping during live testing.
For enhanced diagnostic functionality, the unit provides clear PFC and PSC measurement results following loop tests, helping electricians quickly verify installation safety and fault current levels. Comprehensive RCD testing is included with support for multiple RCD types and ratings, alongside an automated 30mA test sequence with clear PASS/FAIL indication for faster compliance testing. The integrated Ramp Test function allows users to identify nuisance tripping issues by accurately determining the current level at which an RCD operates.
Additional features include automatic three-phase rotation detection, quick socket wiring verification, reverse polarity identification using the dedicated Polarity Test Pad, and precise continuity testing with lead null functionality for accurate resistance measurements.
Combining accuracy, efficiency, safety, and ease of use, the Socket & See MFT5000 is an ideal all-in-one electrical testing solution for professionals who require dependable performance and comprehensive testing capabilities on every job.
