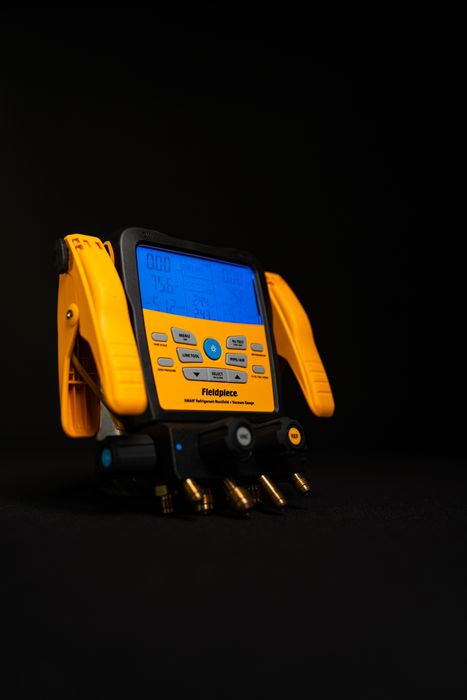

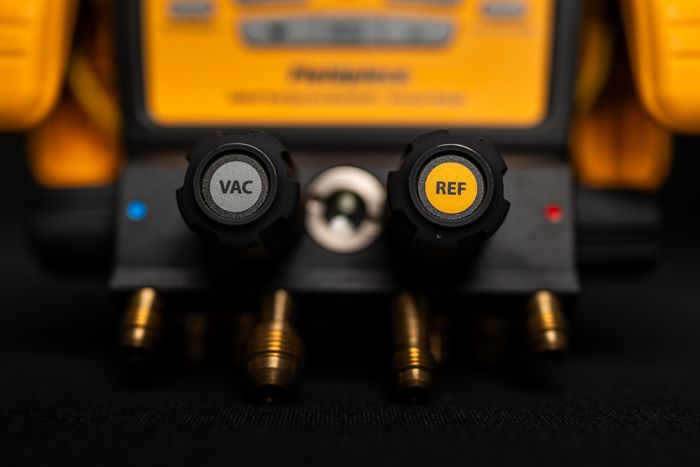

SMAN® Refrigerant Manifold 4-port with Built-in Vacuum Gauge
)
)
)
Certification
EN IEC 60335-1:2023 + A11:2023
EN 60335-1:2012 + A11:2014 + A13:2017 + A14:2019 + A1:2019 + A2:2019 + A15:2021 + A16:2023
EN 62233:2008
IEC 60335-2-104:2021
IEC 60335-2-104:2021 deals with the safety of electrical recovery and/or recycle equipment to recover and/or recycle refrigerant from air conditioning and refrigeration equipment (incl. flammable refrigerant that is classified by ISO 817 as A2L, A2, or A3)
Product

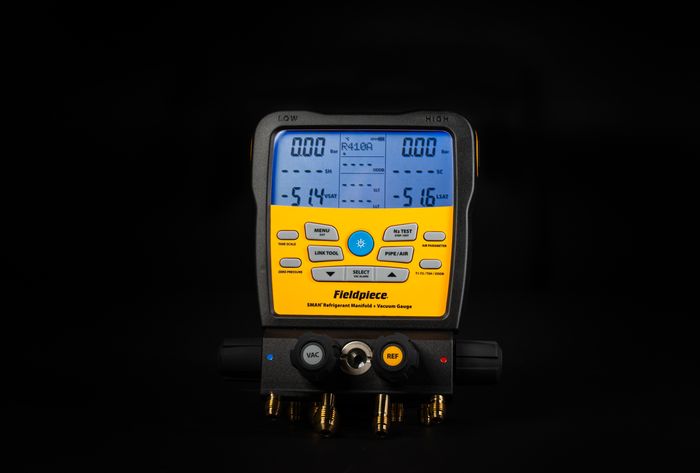

- Display: LCD (12.7 cm diagonal)
- Backlight: Blue (adjustable duration)
- Low Battery Indication: is displayed when the battery voltage drops below the operating level.
- Over Range Display: OL for pressure, - - - - for temperature
- Auto Power Off: 30 minutes of inactivity (adjustable)
- Maximum Manifold Pressure: 5998 kPa (870 Psig)
- Battery Type: 6 x AA alkaline
- Battery Life: 405 hours typical
- (without vacuum, backlight, and wireless)
- Radio Frequency: 2.4 GHz
- Wireless Range: 300 meters line of sight.
- Distance decreases through obstructions.
- Data Port: USB-C (for extracting data logs or updating firmware)
- Operating Environment: -10°C to 50°C at <75% RH
- Storage Environment: -20°C to 60°C at <80% RH (with battery removed)
- Temperature Coefficient: 0.1 x (specified accuracy) per °C (-10°C to 18°C, 28°C to 50°C)
- Weight: 1.8 kg
- Water Resistant: Tested to IP55
