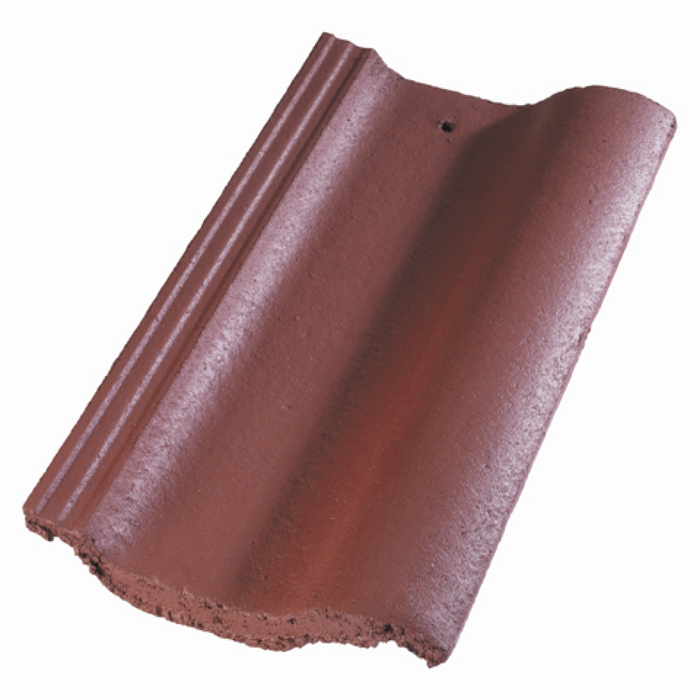

Senator Concrete Roof Tile
)
)
)
)
The FP McCann Senator Concrete Roof Tile is a high-quality interlocking roof tile designed to combine traditional aesthetics with modern installation efficiency. Manufactured from robust precast concrete, it provides a durable, weather-resistant roofing solution suitable for both new build and refurbishment projects.
Featuring a 15×9-style profile, the Senator tile delivers a familiar, traditional roof appearance while benefiting from a single-lap interlocking design. This significantly reduces the number of tiles required per square metre compared to traditional plain tiles, helping to speed up installation and reduce overall labour costs.
The interlocking mechanism also ensures a secure, watertight fit, enhancing resistance to wind-driven rain and improving long-term roof performance. With consistent factory production and compliance with recognised standards, the Senator tile offers reliability, longevity, and design flexibility for a wide range of construction projects.
Key Features & Benefits
- Interlocking design: Provides a secure, weather-tight and efficient roofing system
- Traditional 15×9 appearance: Delivers a classic, widely accepted roof profile
- Reduced tile usage: Fewer tiles required per m² compared to plain tiles, lowering costs
- Fast installation: Single-lap system reduces labour time and installation complexity
- Durable concrete construction: High resistance to harsh weather conditions and long service life
- Consistent quality: Machine-manufactured for accuracy and reliable performance
- Standards compliant: Produced to BS EN 490 with UKCA/CE marking
Specifications
- Material: Concrete
- Tile size: Approx. 385mm x 230mm
- Weight per tile: Approx. 2.85kg
- Cover width: Approx. 200mm
- Minimum headlap: 75mm
- Minimum pitch: 22.5° (110mm headlap)
- Pitch range: Up to approx. 70°
- Covering capacity: Approx. 16–18 tiles per m²
Applications
Ideal for use in:
- Residential housing developments
- New build and re-roofing projects
- Traditional and modern roof designs
- Standard pitched roof installations
- Large-scale construction projects requiring efficient coverage
The FP McCann Senator Concrete Roof Tile offers a balance of traditional appearance, modern efficiency, and long-term durability, making it a practical and cost-effective choice for a wide range of roofing projects.
