Seismic Restraint Mounts
)
)
)

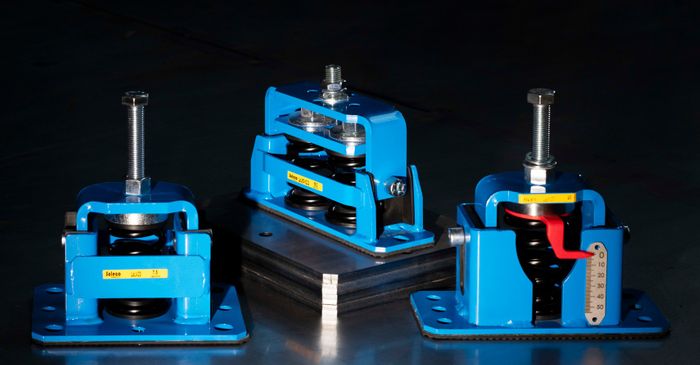

The LaL – LaLS series includes anti-vibration mounts with integrated seismic restraint devices, developed to provide both effective vibration isolation and mechanical containment of the supported equipment. Unlike open spring mounts, these housed systems are designed to contain the spring and prevent the unit from overturning in the event of seismic activity, strong wind or multidirectional dynamic forces.
Their robust external structure, made of S235JR steel with protective treatments and epoxy powder coating, is engineered to withstand stresses acting on suspended machinery. The internal springs, made of harmonic steel, ensure reliable elastic performance and load support.
The standard range includes single- and multi-spring configurations, with load capacities from 17 kg up to 10,000 kg per fixing point. Special reinforced executions can reach up to 15,000 kg per fixing point. On request, the containment structure can also be manufactured in AISI 304 or AISI 316 stainless steel, making the mounts suitable for aggressive environments, extreme temperatures or salty atmospheres.

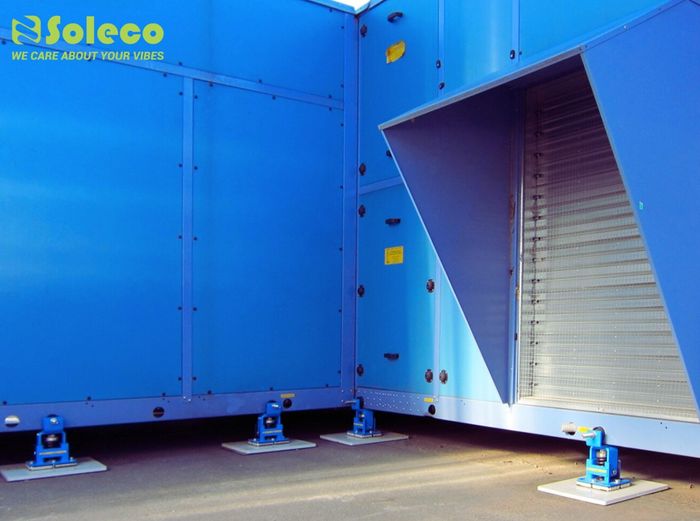

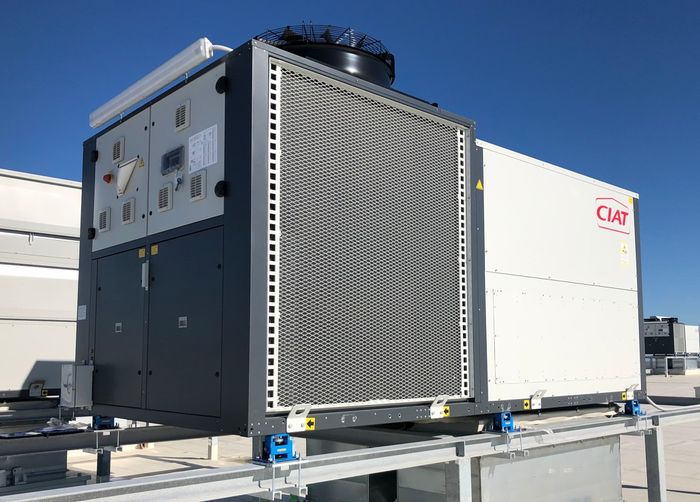

Thanks to their dual anti-vibration and anti-seismic function, LaL – LaLS mounts are particularly suitable for HVAC&R equipment, industrial machinery and critical installations where stability, safety and continuity of operation are essential.
