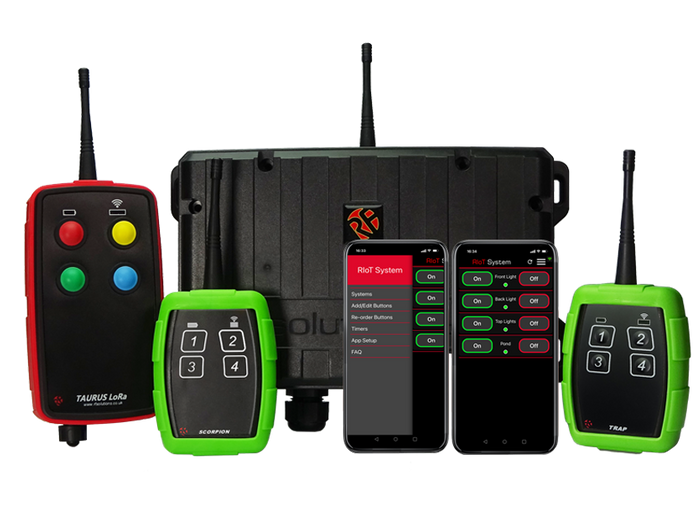

RIoT System for Wireless Switching Lights and Motors, 868MHz OR 918MHz
)
)
)
The RIoT wireless switching system is a versatile, high-performance wireless control solution designed for installers working across lighting, access control, and industrial applications. Combining long-range RF technology with smart device connectivity, it enables seamless control of outdoor lighting, gates, doors, pumps, and machinery from virtually anywhere.
Using LoRa spread spectrum technology, the system delivers exceptional range of up to 20km line-of-sight, while integrated Wi-Fi enables control via mobile apps for remote operation and monitoring. This dual-control capability provides both local reliability and global accessibility—ideal for modern connected installations.

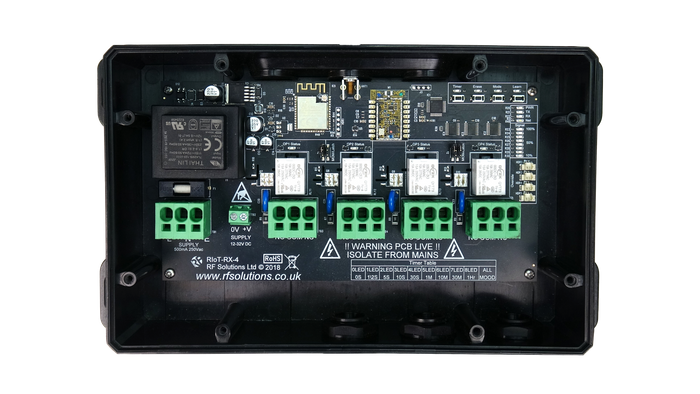

The system features four high-capacity relay channels (rated up to 1kW), each configurable for multiple operating modes including latching, momentary, timed events, and lighting-specific “mood” control. Built-in time clock functionality allows installers to set automated schedules, including dynamic dawn and dusk switching that adjusts throughout the year.

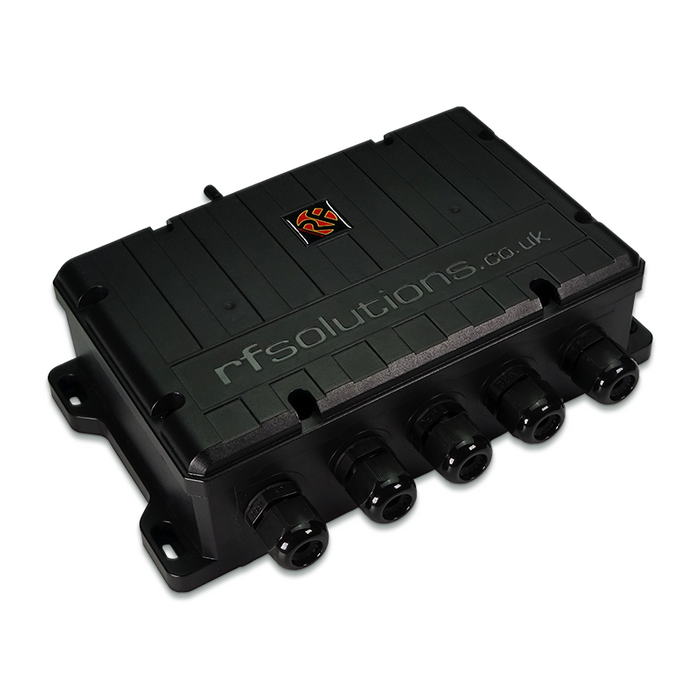

Engineered for demanding environments, the RIoT receiver is housed in a robust IP68-rated enclosure, ensuring protection against water and dust for dependable outdoor use. Flexible power input options (12–32V AC/DC or 110–230V AC) and availability in both 868MHz and 918MHz variants make it suitable for global deployment.
With long-range performance, smart automation features, and rugged reliability, the RIoT system offers installers a powerful, flexible solution for wireless switching across a wide range of applications.
