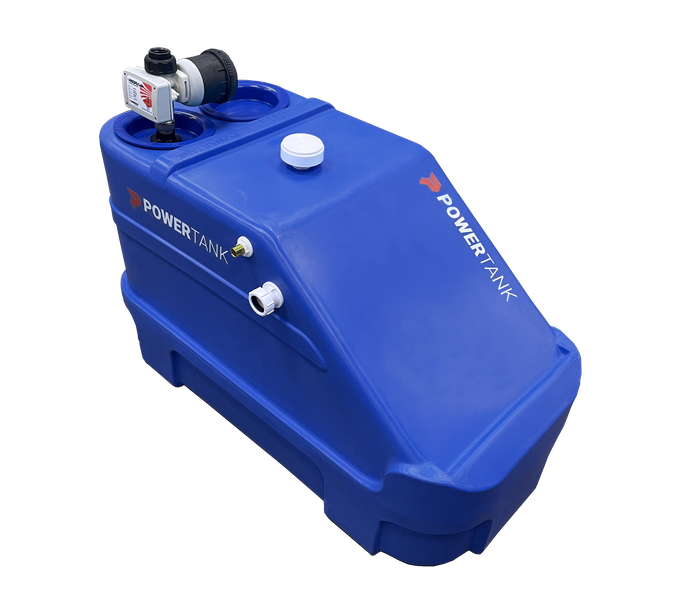

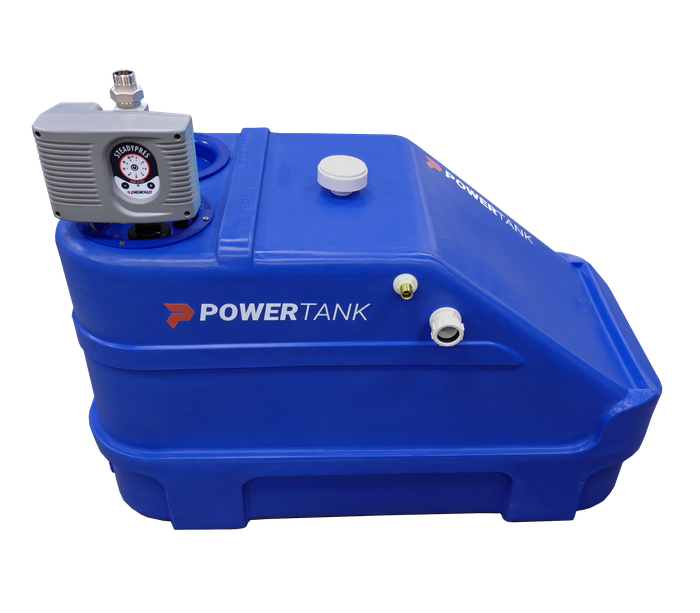

Powertank Snug
)
)
)
Powertank Water Boosting Systems
Snug 350LTR
The Powertank Snug is designed for domestic use where there is low mains water pressure and where pressure fluctuates. It is designed with understairs applications in mind, but is suitable for many different types of premises, from bungalows to B&Bs.
This versatile system which comes in 1 to 2 pump options offers duty/assist and duty/standby. The system can also be adapted to include the Integrated UV board, which facilitates UV disinfection of the water supply.
The design of the unit enables the installer/end user to maximise available space, while inclusion of a removable pump on lid allows for easy installation, access and maintenance.
Key Features
Non-corrosive holding tank (WRAS-approved material)
Pre-fitted WRAS approved fill valve
Minimal installation required
Adjustable digital display flow controller (Variable Speed Option)
Dry run protection with auto restart (time delay)
AF Air gap (AB Air gap optional)
Suitable up to Fluid Category 4 (CAT 5 Optional)
Performance Range
Output approx 35 l/min @ 3 Bar - Fixed Speed
Output approx 80 l/min @ 3 Bar - Variable Speed
Output approx 160 l/min @ 3 Bar - Variable Speed Twin
System Connections
Inlet: ½” BSP
Outlet: 1” BSP
Overflow: 1 ¼” BSP
Drain Off: 1” BSP
Dimentions
350ltr Snug Fixed Speed L: 1200mm W:590mm H:885mm Weight: 28kg
350ltr Snug Variable Speed L: 1200mm W:590mm H:900mm Weight: 30kg
350ltr Snug Variable Speed Twin L: 1200mm W:590mm H:900mm Weight: 45kg
