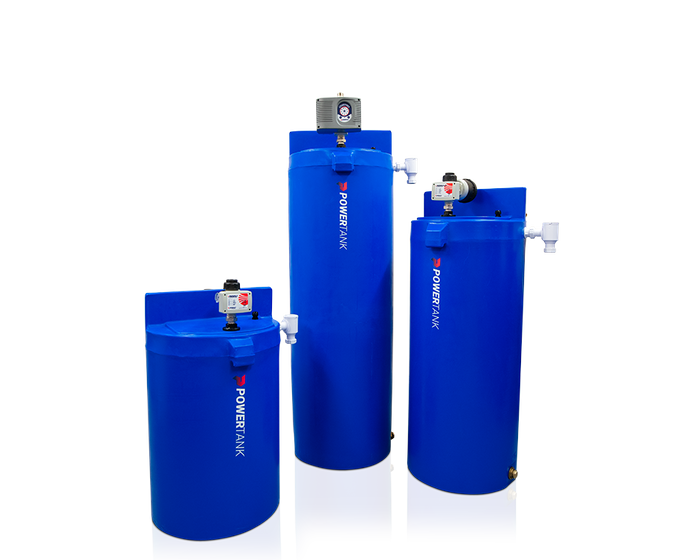

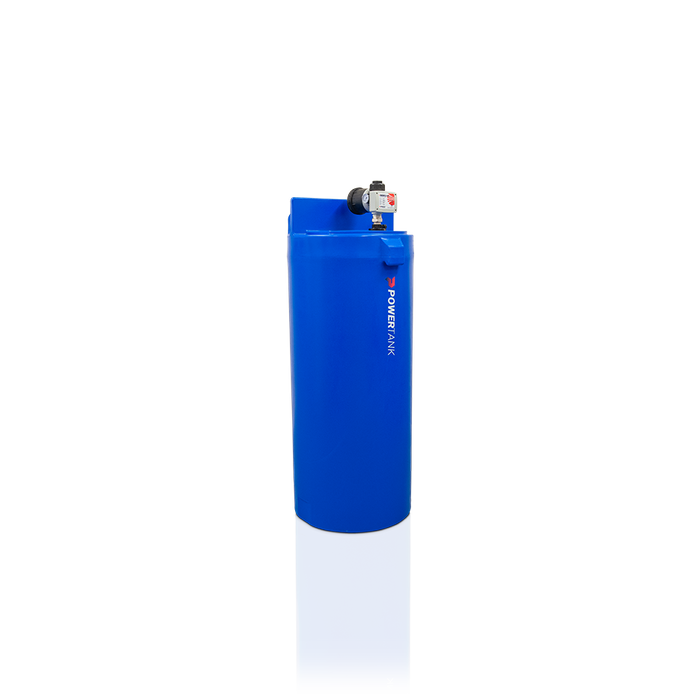

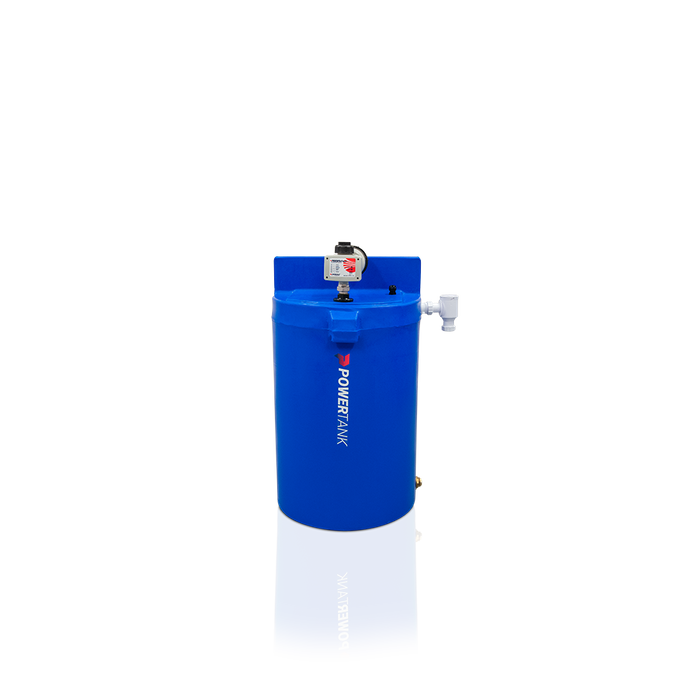

Powertank Slimline
)
)
)
)
The Powertank Slimline range is designed to fit through a standard doorway while occupying minimal floor space. This makes it an ideal choice for both new and existing properties, reducing access challenges. It can be conveniently installed in utility rooms or garages.
The slimline range is ideal for 3 – 5 bedroom houses, with poor water pressure and flow, and where floor space is limited. It is electronically controlled, starting and stopping the pump automatically when an outlet is opened and closed.
Key Features
Non-corrosive holding tank (WRAS-approved material)
Pre-fitted WRAS-approved fill valve
Minimal installation required
Adjustable digital display flow controller (Variable Speed Option)
Dry run protection with auto restart (time delay)
AF Air gap (AB Air gap optional)
Suitable up to Fluid Category 4 (CAT 5 Optional)
Performance Range
Output approx 40 l/min @ 3 Bar - Fixed Speed
Output approx 80 l/min @ 3 Bar - Variable Speed
Range Options
200ltr Slimline Fixed Speed
200ltr Slimline Variable Speed
350ltr Slimline Fixed Speed
350ltr Slimline Variable Speed
System Connections
Inlet: ½” BSP
Outlet: 1” BSP
Overflow: 1 ¼” BSP
Drain Off: 1” BSP
Dimentions
200ltr Slimline Fixed Speed L: 584mm W:584mm H:1190mm Weight: 26kg
200ltr Slimline Variable Speed L: 584mm W:584mm H:1190mm Weight: 32kg
350ltr Slimline Fixed Speed L: 584mm W:584mm H:1656mm Weight: 29kg
350ltr Slimline Variable Speed L: 584mm W:584mm H:1656mm Weight: 35kg
450ltr Slimline Fixed Speed L: 584mm W:584mm H:2100mm Weight: 33kg
450ltr Slimline Variable Speed L: 584mm W:584mm H:2100mm Weight: 39kg
