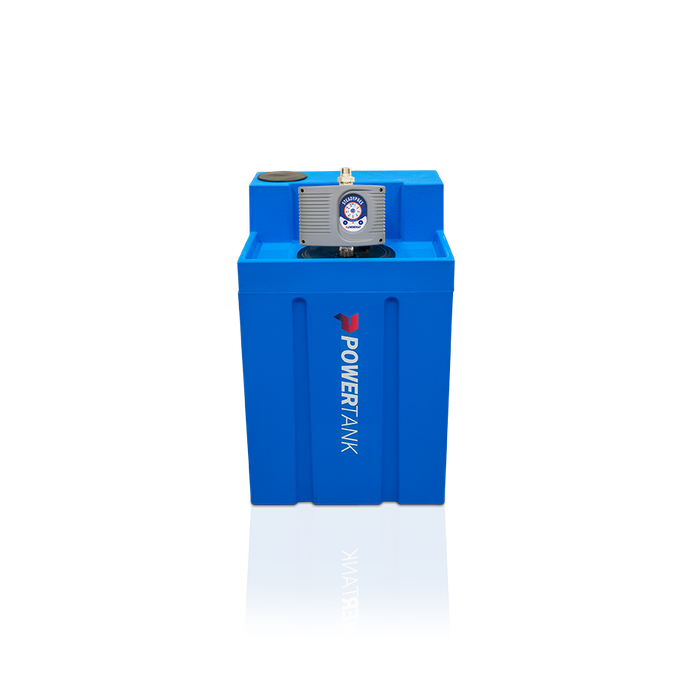

Powertank Compact
)
)
)
The Powertank Compact has been specifically designed for smaller properties with low water pressure and flow and where space is at a premium i.e. apartments, cottages, townhouses.
Fitting into the space of a standard kitchen unit, the Powertank Compact is a similar size to a washing machine so can be hidden away behind a cupboard door.
The electronic controller automatically starts and stops the pump when a drop in pressure is sensed i.e. a tap is opened and closed.
Key Features
Non-corrosive holding tank (WRAS-approved material)
Pre-fitted WRAS-approved fill valve
Integral overflow weir
Minimal installation required
Adjustable digital display flow controller (Variable Speed Option)
Dry run protection with auto restart (time delay)
AB Air gap
Suitable for up to Fluid Category 5
Performance Range
Output approx 40 l/min @ 3 Bar - Fixed Speed
Output approx 65 l/min @ 3 Bar - Variable Speed
Range Options
125ltr Compact Fixed Speed
125ltr Compact Variable Speed
System Connections
Inlet: ½” BSP
Outlet: 1” BSP
Overflow: 1 ½”
Drain Off: 1” BSP
Dimentions
125ltr Compact Fixed Speed L: 560mm W:490mm H:850mm Weight: 27kg
125ltr Compact Variable Speed L: 560mm W:490mm H:850mm Weight: 33kg
