Line Diffusers
)
)
)
)

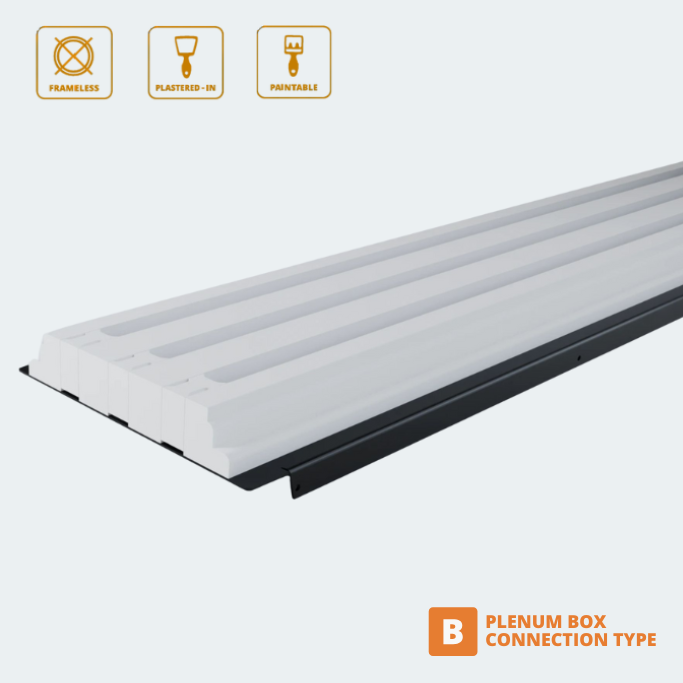

Line Slot Diffusers: Features, Advantages, and Installation Guide
Features:
- A modern grille diffuser made of durable materials
- Sleek, modern design of slotted diffuser
- Available in a range of sizes and options
- Easy to install and use
- Adjustable airflow patterns

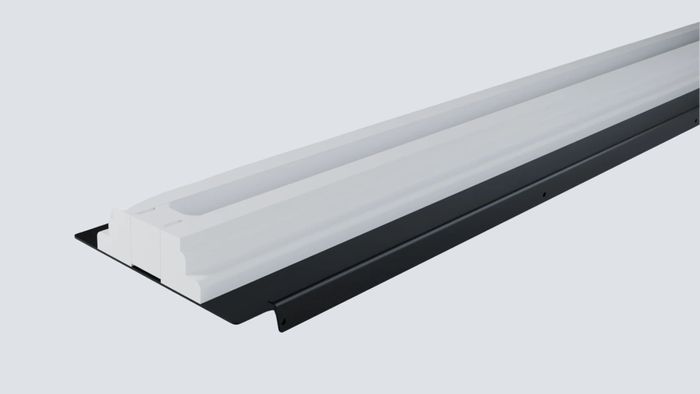

- A linear slot diffuser that can be installed on walls or ceilings
- Ideal for use in homes, offices, and commercial spaces
- Available in three lengths: 1250mm, 1000mm, and 625mm
- Available with two slot gaps: 12mm and 18mm
- Available with 1, 2, or 3 slots
High-Performance Line Diffusers for Modern Interiors
Benefits:
- A linear diffuser grille can Improve air quality by providing a wider flow
- The frameless linear diffuser can help provide a comfortable and healthy environment
- Reduces noise levels
- Increases energy efficiency
- With upstream filtering, the plaster in linear slot diffuser can help to reduce allergens and pollutants in the air
- The plasterboard vent is the same material as its surrounding for a seamless finish
Fixing

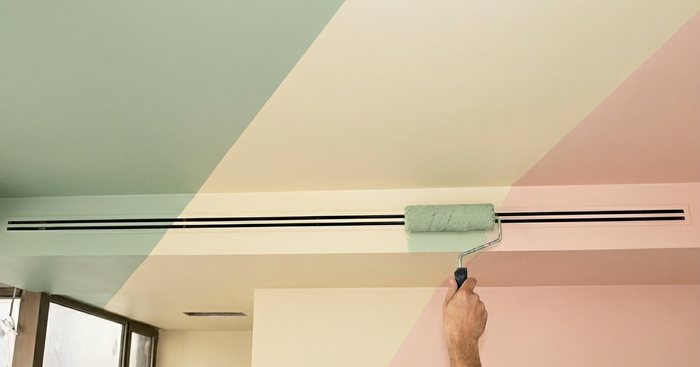

Standard fixing of our slot diffusers is by use of a standard plasterboard jointing compound which can then be sanded and painted. On new-build sites, the plenum and diffuser are normally hung together and the plasterboard then cut and introduced to the face of the diffuser. Further instructions to install the hidden linear diffuser can be found on the video option above. video option above.
Technical Parameters
See legend and footnotes for explanation. Supply and exhaust figures are available on separate images. These charts are also available as downloads in the documents section above.
