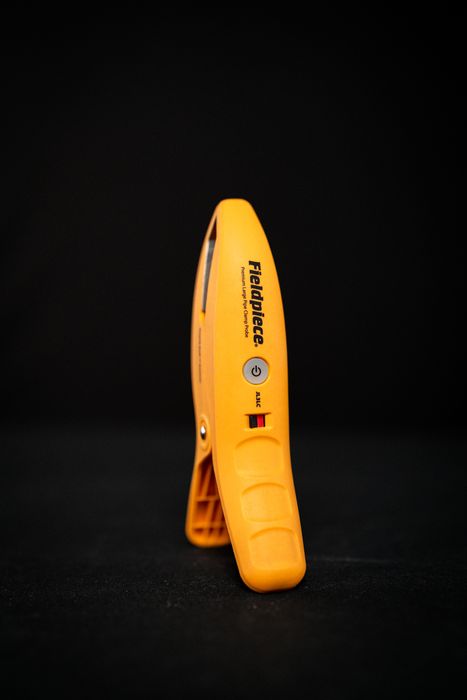

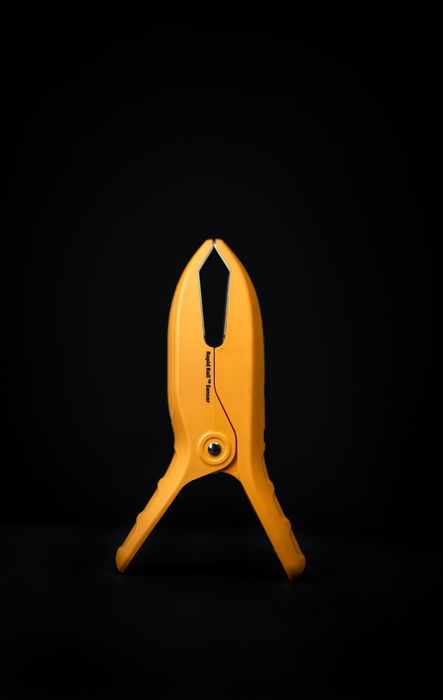

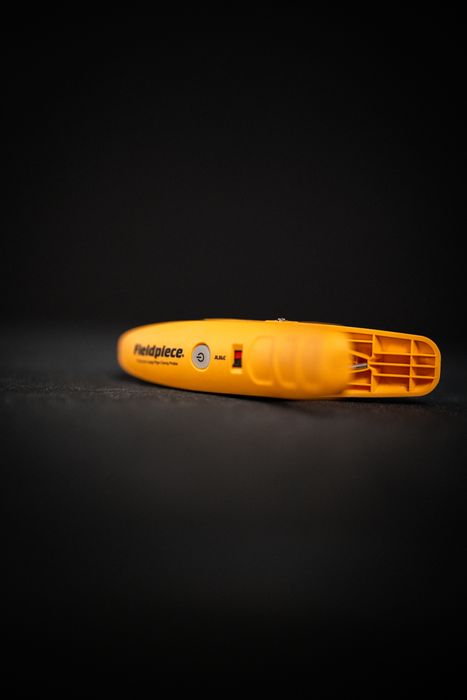

Job Link® System Large Pipe Clamp
)
)
)
- Pipe Contact Surface Compatibility: Electrically conductive
- Pipe Size Compatibility: 3/4″ to 4 1/8″ (19.05mm to 104.775mm) OD
- Sensor Type: Rapid Rail™ thermocouple (nickel chromium / nickel aluminum)
- Measurement Feedback: Beeper and LED
- Measurement Range: -46°C to 125°C. Plastic body and wire insulation are designed to withstand a maximum continuous temperature of 125°C.
- Stabilization Time: 3 seconds typical
- Accuracy: ±2.2°C thermocouple only ±0.6°C after field calibration
- Battery Type: 2 x AAA, NEDA 24A, IEC LR03
- Battery Life: 150 hours typical alkaline – LED blinks red when battery replacement is needed
- Auto Power Off: 2 hours (APO can be disabled)
- Wireless Range: 300 meters line of sight
- Radio Frequency: 2.4 GHz
- Operating Environment: -20°C to 50°C at <75% RH
- Storage Temperature: -20°C to 60°C, 0 to 80% RH (with batteries removed)
- Temperature Coefficient: 0.1 x (specified accuracy) per 1°C (-20°C to 18°C, 28°C to 50°C)
- Weight: 277 g
