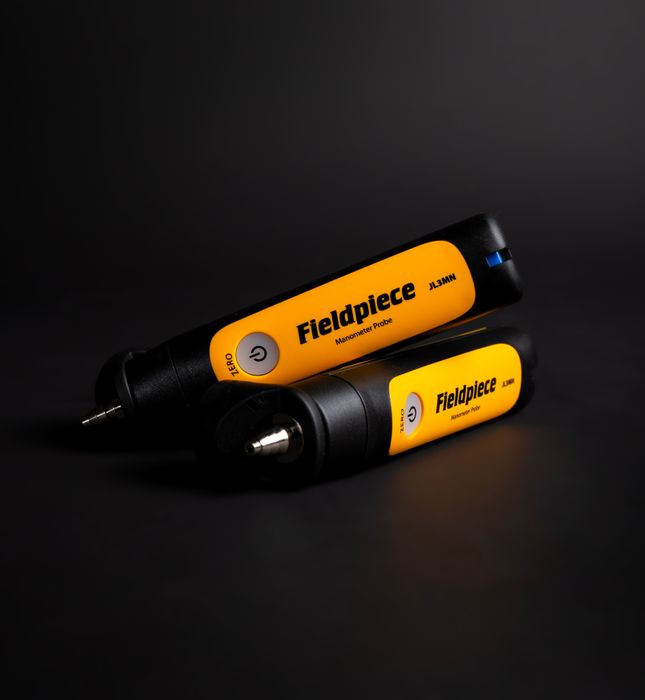

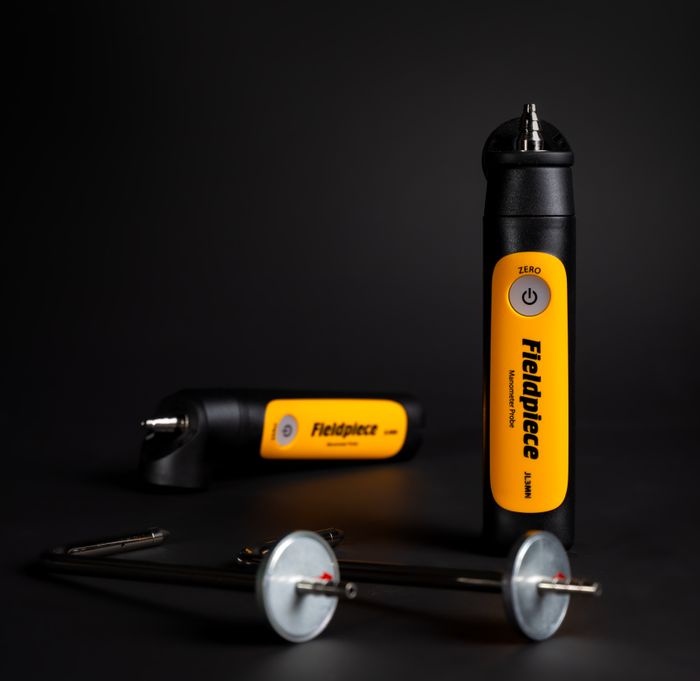

Job Link® System Dual Port Manometer Probe Kit
)
)
- Compatible Media: Dry, non-corrosive gas
- Pressure Port: Tube connector for flexible tubing (4.5 to 8mm ID)
- Units of Measure: inWC, mmWC, mbar, psi, Pa
- Accuracy and Ranges:
inWC: ±0.02 on 0.00 to ±2.00 (±1.5% FS on 2.00 to ±60.00);
mmWC: ±0.5 on 0.0 to ±51.0 (±1.5% FS on 51.0 to ±1500.0);
mbar: ±0.05 on 0.00 to ±5.00 (±1.5% FS on 5.00 to ±150.00);
psi: ±0.001 on 0.000 to ±0.072 (±1.5% FS on 0.072 to ±2.165);
Pa: ±5 on 0 to 498 (±1.5% FS on 498 to ±14930) - Maximum Overload Pressure: 321.08 inWC (11.6 psi; 80.0 kPa)
- Battery Type: 2 x AAA, NEDA 24A, IEC LR03
- Battery Life: 150 hours typical alkaline. LED slow-blinks red when battery replacement is needed.
- Auto Power Off: 2 hours (APO can be disabled)
- Wireless Range: 300 meters line of sight. Obstructions affect distance.
- Radio Frequency: 2.4 GHz
- Operating Environment: -20°C to 50°C at <75% RH
- Storage Temperature: -20°C to 60°C at <80% RH (with batteries removed)
- Temperature Coefficient: 0.1 x (specified accuracy) per 1°C (-20°C to 18°C, 28°C to 50°C)
- Weight: 137 g
