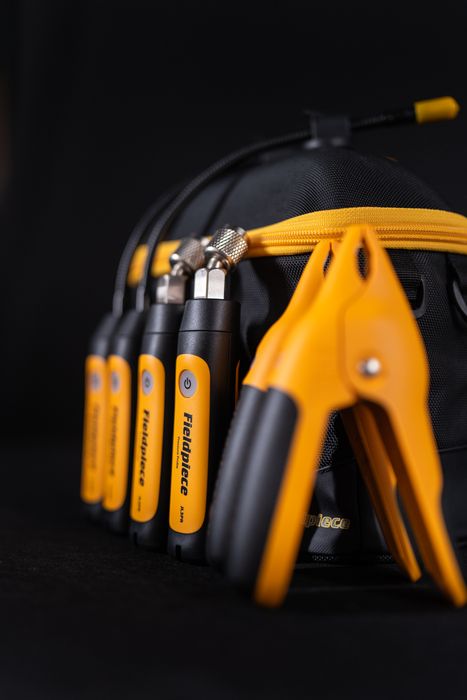

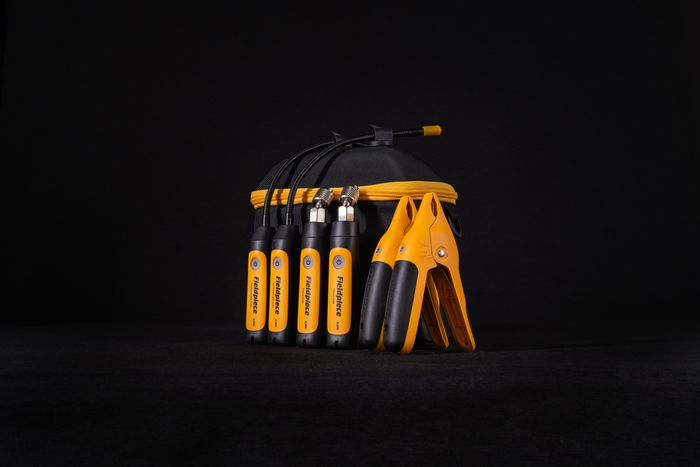

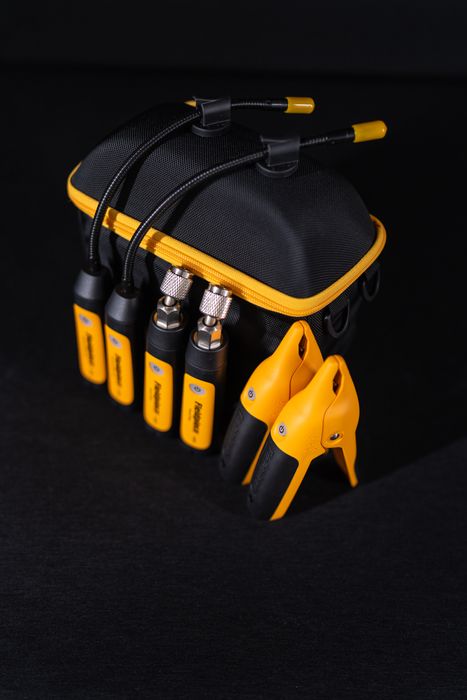

Job Link® System Charge and Air Kit
)
)
)
- Wireless Range: 300 meters line of sight
- Wireless Frequency: 2.4 GHz
- Battery type: 2x AAA
- Battery Life: 150 hours typical alkaline
- Auto Power Off (APO): 2 hours (can be disabled)
- Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or Android™ 5.0
Job Link® Pressure Probe – JL3PRINT
- Connector Type: 45° Standard 1/4” NPT female flare
- Best Accuracy: ±1 psig (±7 kPa)
- Measurement Range: 0 to 580 psig (0 to 4000 kPa)
- Maximum Overload: 800 psig (5500 kPa)
- Water Resistant: Designed to IP54
Job Link® Premium Pipe Clamp Probe – JL3PCINT
- Pipe Compatibility: Electrically conductive 1/4” to 1 3/8” (6.4mm to 34.9mm) dia.
- Accuracy: ±0.6°C
- Measurement Range: -46°C to 125°C
- Stabilization Time: Three seconds typical
- Measurement Feedback: Beeper and LED
- Water Resistant: Designed to IP54
- Patent: 10,365,165
Job Link® Flex Psychrometer Probe – JL3RHINT
- Radio Frequency: 2.4 GHz
- Operating Environment: -20°C to 50°C at <75% RH
- Storage Temperature: -20°C to 60°C, 0 to 80% RH (with batteries removed)
- Temperature Coefficient: 0.1 x (specified accuracy) per 1°C (0°C to 18°C, 28°C to 50°C)
- Weight: 150 g
- Flexible Probe: 9mm diameter; 235mm length
