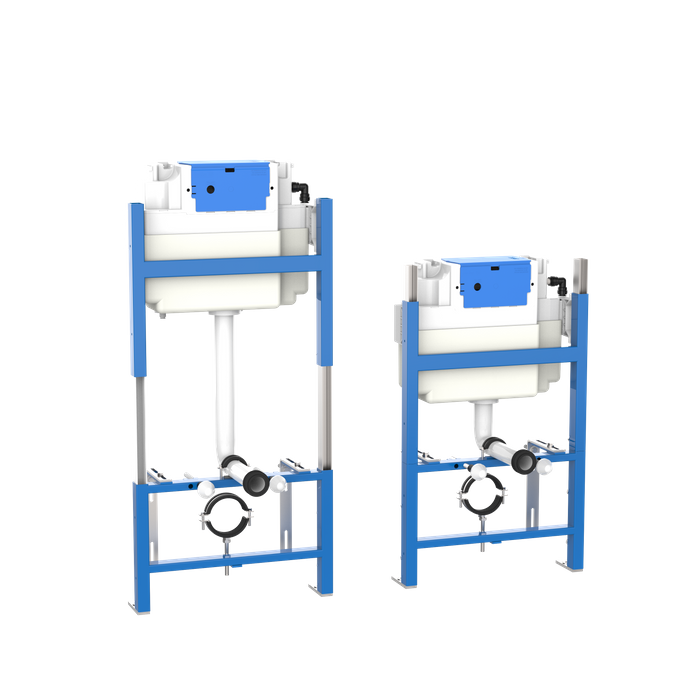

The Illusion A is the most adjustable wall-hung WC support frame on the market, offering unrivalled installation flexibility across a wide range of domestic and commercial applications.

Its height-adjustable frame and WC pan positioning allow seamless alignment in even the most challenging layouts. Designed for use against flat walls or in corners, the frame’s 360-degree fixing brackets – rotatable through 180˚ and 360˚– provide complete freedom to adapt to any space.

Built from robust steel square hollow sections and load-tested to 4kN in compliance with BS EN 997, Illusion A delivers proven strength and stability.

The integral Dudley Vantage Cistern offers reliable performance and can be easily converted to deliver factory-set flush volumes, supporting bespoke water-saving solutions behind panelling, tiles, or fitted bathroom furniture.

Features

• Unique design enables frame to be set between 820mm and 1078mm for unrivalled installation flexibility
• Height adjustable
• Legs adjust to offer WC pan height fixing flexibility
• Wall and floor fixing brackets can be fixed through 180 Degrees and 360 Degrees respectively to provide further flexibility
• Load tested to 4kN to ensure compliance with BS EN 997 when fitted with a wall-hung pan
• Strong steel square hollow construction
• Blue powder coated finish and zinc plated wall and floor brackets
• Flushbend and WC pan connector clamps
• Integral factory fitted Dudley Vantage cistern
• 5L & 4L mono flush is achievable
• A polystyrene cistern insulation jacket is available
• Category 3 and Category 5 cisterns available
• Can be supplied with a wide range of pushbuttons, plates and electronic sensors
• The Illusion A frame can also be supplied with an integral Phantom, lever operated cistern
