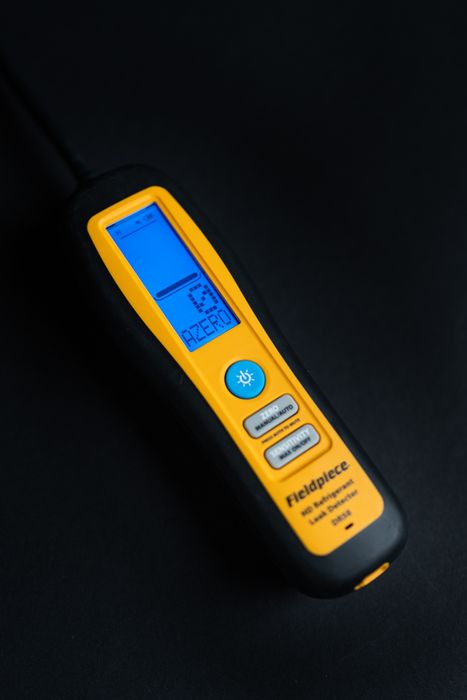

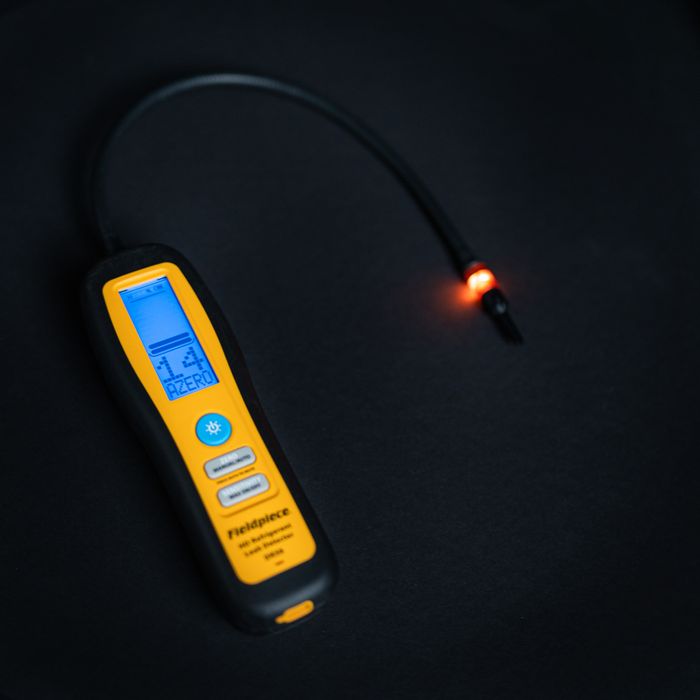

Heated Diode Refrigerant Leak Detector
)
)
)
- Sensor Type: Heated diode
- Sensor Life: 300 hours typical
- Sensitivity Levels: High, medium, low (selectable)
- Maximum Sensitivity: 1g/a, stationary; 3g/a, in motion

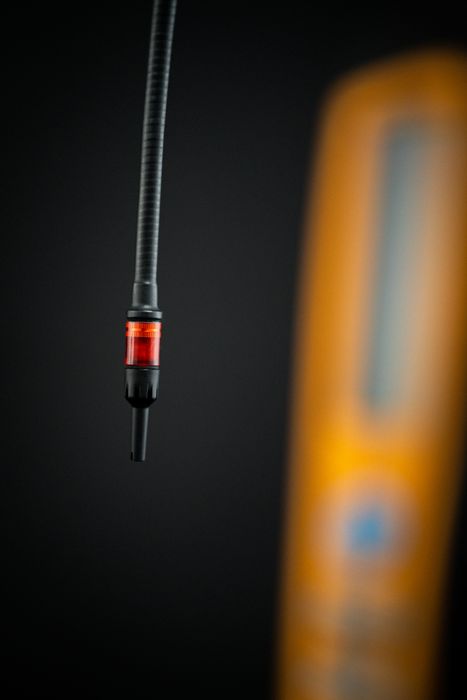

- Detection Feedback: Red tip LED, LCD bar graph, LCD digits, beeper
- Refrigerants: HFC, HCFC, CFC, HFOs, blends and Tracer gas
- Response Time: <1 seconds typical
- Recovery Time: <10 seconds typical
- Battery Type: 3.7 VDC (nominal) 2600mAh, non-replaceable
- Charge Time: 6 hours typical with included charger.
- Battery Life: 18 hours typical, backlight off
- Auto Power Off: 10 minutes without detection or button press
- Operating Environment: -10°C to 40°C; < 75% RH (non-condensing)
- Storage Temperature: -20°C to 60°C; < 80% RH
- Weight: 400g
- Water Resistance: Designed to IP54
