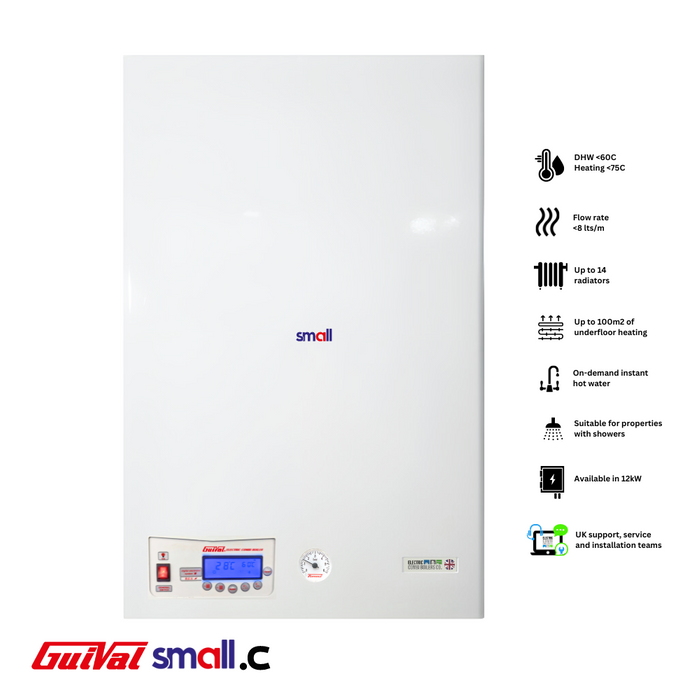

Guival Small.C 12kW – Small Electric Combi Boiler for central heating & shower
)
)
)
- GUIVAL.C, a small yet powerful electric combi boiler for small properties with a shower and central heating – manufactured in Italy.
- Clean and safe solution for heating and hot water.
- Continuous hot water – suitable for properties with a shower (the use of a good thermostatic shower mixer is recommended to experience the best quality shower possible).
- Can power up to 14 radiators or up to 100m2 of underfloor heating.
- 240v single phase.
- Uses 50 Amps.
- Use a 10mm cable
- Flow rate: <8 Lt/min (Click here to check the hot water graph).
- Completely silent due to Triac-Based Technology.
- Modulates from 2kW – 12kW.
- Digitally displayed temperatures.
- Simply connect the flow and return from the heating circuit and the cold supply for HW.
- All components, for the normal function of the boiler, are included inside.
- Hot water limited to 60°C.
- Central heating limited to 75°C
- Installer and user-friendly.
- 5 years warranty (Subject to TCs and registration of warranty. A boiler service every 2 years is recommended).
PLEASE NOTE: THE BOILER NEEDS 300mm CLEARANCE AT BOTTOM
____________________________________________
Guival.C by Guival:
Hot water delivery 8 litres/min. Constant 40°C – 60°C (depending on the incoming mains water temperature).
The use of a Guival.C to fill a bath is not recommended, to fill a bath the flow rate must be reduced significantly, which means it could take 15 min+ to fill a bath.
Can only supply hot water at one outlet at a time due to pressure loss if you open two outlets.
Uses a full 12kW or 50 Amps.
Graph (Hot water output):
____________________________________________
The GUIVAL C is available in 12kW.
It is manufactured in Italy and fully certified by UK/EU certification bodies.
We have a team of professional installers trained on how to install, service and repair our boilers to provide support remotely or on-site across the UK.
Delivery Options:NEXT- WORKING DAY and STANDARD Delivery (3-5 working days) and COLLECTION from our WINDSOR HQ are available.
