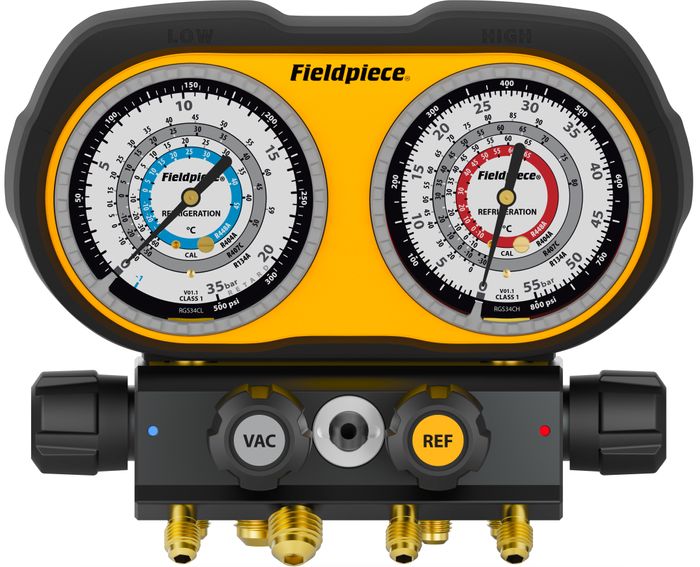

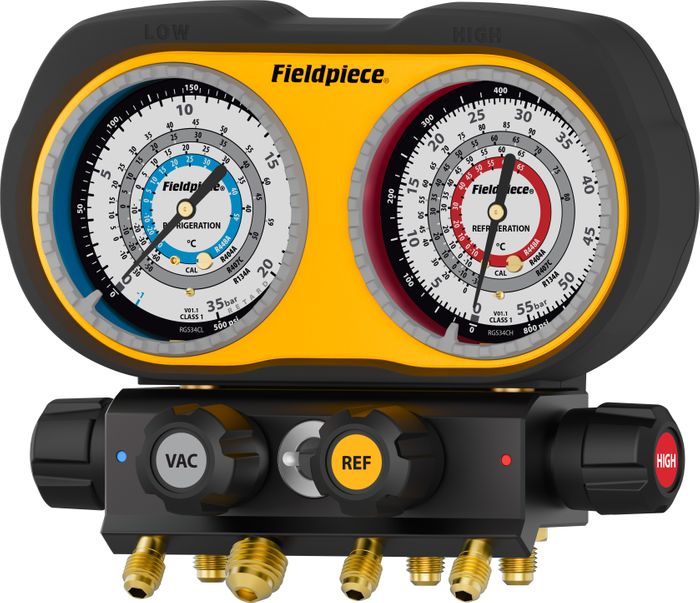

GS434C Analogue Manifold
)
)
- Manifold Block Max Overpressure: 3000 psi (206 Bar)
- High Side Pressure Range: 0 to 55 Bar (0 - 800 PSi)
- Low Side Pressure Range: -1 to 34 Bar (30 inHg to 500 psi)
- Low Side Overpressure Retard Protection: 20 Bar (300 psi)
- Accuracy: +/-1% Full Scale, Class 1A
- Standard Operating Environment: -20 to 50 °C (-4 to 112 °F), <75% RH
- Refrigerant Ports: (3) 1/4” SAE Male Flare Fitting
- Manifold Bore Diameter (3-Port): 1/4” (6.35 mm)
- Evacuation Port (4-port): (1) 3/8” SAE Male Flare Fitting
- Manifold Bore Diameter (4-port): 3/8” (9.53 mm)
- Weight (3-Port): 1.3 kg
- Weight (4-Port): 1.6 kg
