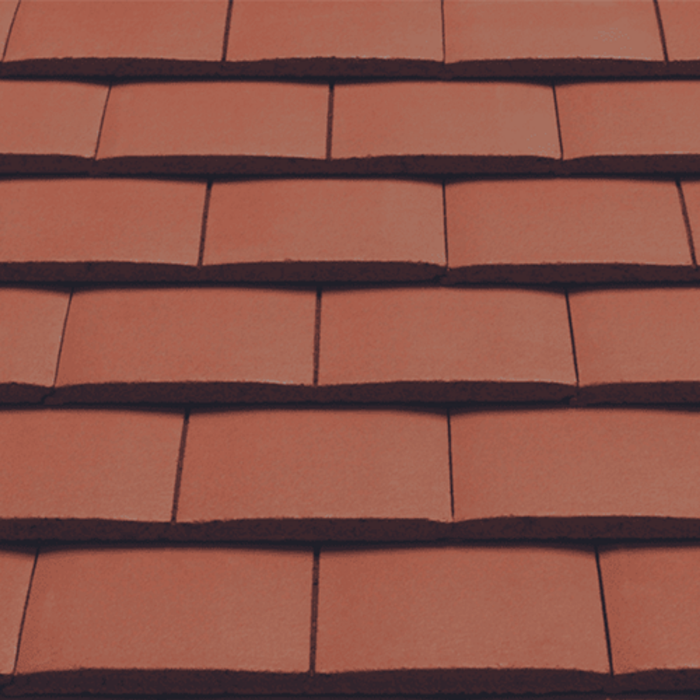

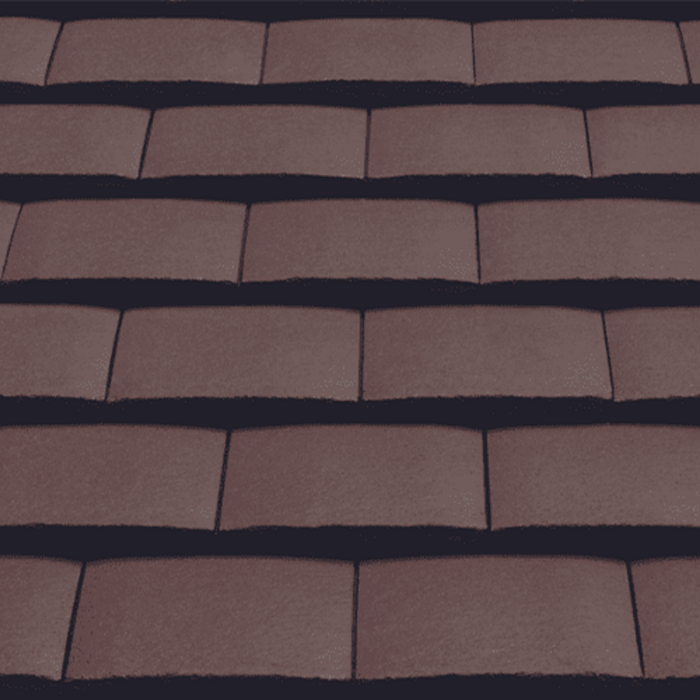

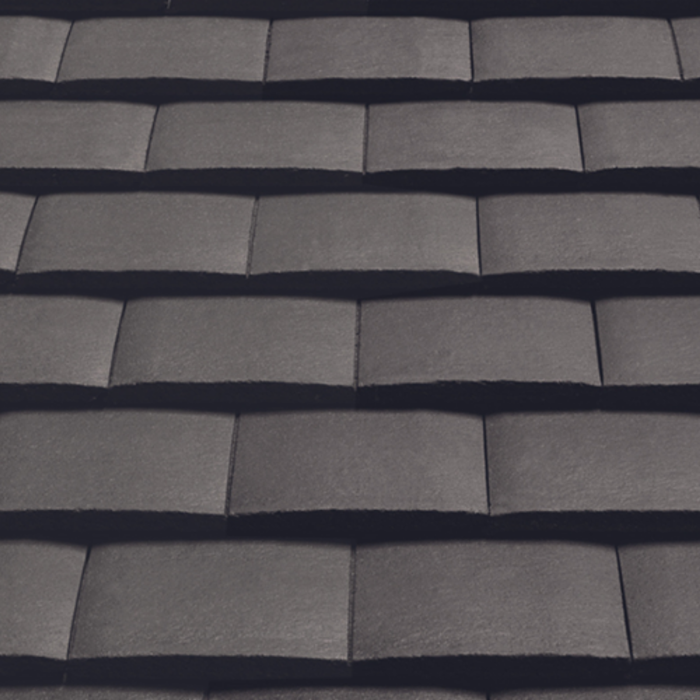

Gemini Roof Tile
)
)
)
The FP McCann Gemini Concrete Roof Tile is a high-performance interlocking tile that combines the classic appearance of traditional double cambered plain tiles with the efficiency of a modern single-lap system.
Designed to replicate the visual appeal of two plain tiles in one unit, Gemini offers a seamless, authentic finish while significantly reducing the number of tiles required per square metre. This results in faster installation, reduced labour costs, and improved overall efficiency on site.
Its interlocking profile enhances weather resistance, providing a secure, watertight roof covering capable of withstanding challenging conditions. Suitable for a wide range of roof types, including lower pitches compared to traditional plain tiles, the Gemini tile delivers both versatility and long-term performance.
Recognised for its innovation, Gemini has been a market-leading solution for decades, offering a balance of aesthetic appeal, durability, and sustainability for modern and traditional roofing projects.
Key Features & Benefits
- Authentic plain tile appearance: Double cambered design mimics traditional plain tiles
- Interlocking system: Provides a secure, weather-tight roof with improved performance
- Reduced tile usage: Approx. 16 tiles per m² compared to up to 60 for traditional plain tiles
- Lower pitch capability: Can be used on roofs down to approx. 22.5°
- Faster installation: Fewer tiles and simplified fixing reduce labour time and costs
- Durable concrete construction: Offers long service life and resistance to weathering
- Sustainable solution: Reduces material use, transport, and environmental impact
- Complete system: Compatible with a full range of fittings and accessories
Specifications
- Material: Concrete
- Tile size: Approx. 270mm x 337mm
- Weight per tile: Approx. 2.8kg
- Cover width: Approx. 316mm
- Minimum pitch: 22.5° (80mm headlap)
- Headlap: 75–80mm depending on pitch
- Covering capacity: Approx. 16–18 tiles per m²
Applications
Ideal for use in:
- Residential housing developments
- New build and refurbishment projects
- Traditional and heritage-style roofs
- Roofs requiring a plain tile appearance with improved efficiency
- Standard pitched roof installations
The FP McCann Gemini Concrete Roof Tile delivers a unique combination of traditional aesthetics and modern efficiency, making it a cost-effective, durable, and visually appealing choice for a wide range of roofing applications.
