Forbest 3388PH Mid Range with Pan-Tilt Camera
)
)
)

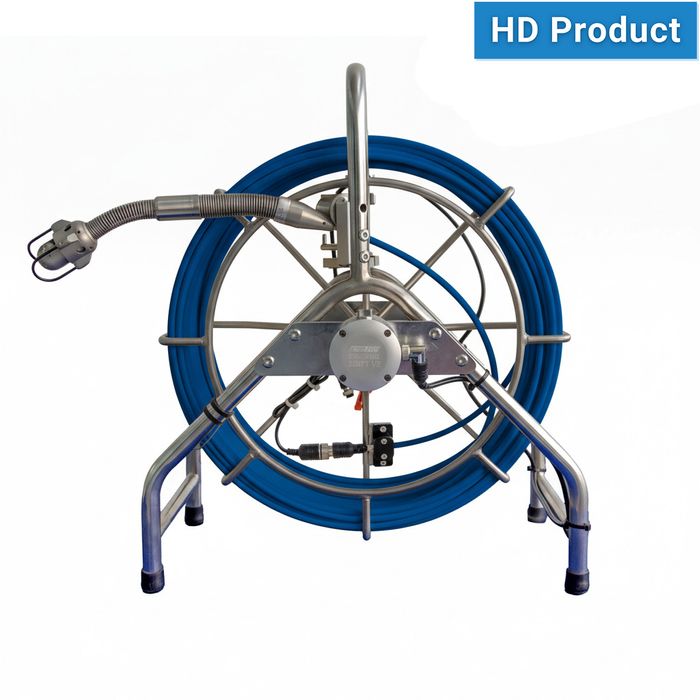

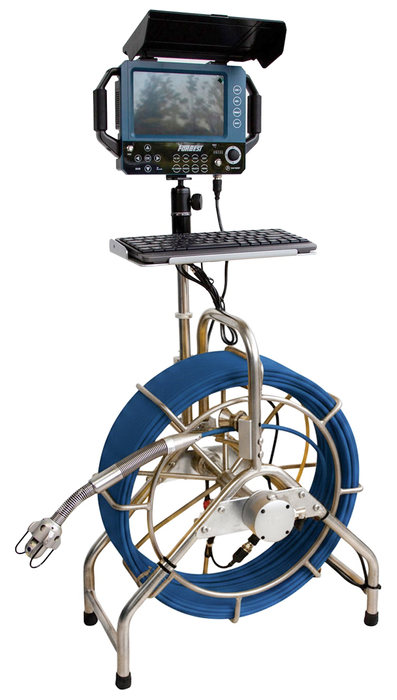

The 3388PH system is a mid-range HD pipe inspection solution designed for inspecting pipelines ranging from 4″ to 10″ in diameter. It features an 8″ high-resolution LCD control station with HDMI output, Wi-Fi connectivity, and mobile app viewing for flexible inspection workflows. The system is equipped with a 1.25″ (32 mm) C32 HD 1080P pan-tilt waterproof colour camera head with integrated LED lighting, enabling 180° tilt and 360° rotation for comprehensive pipe visualization. A durable 8 mm fiberglass push rod cable with a built-in meter counter provides up to 200 ft of inspection reach. The camera includes a built-in 512 Hz sonde transmitter for use with compatible locating equipment. Additional features include voice-over recording via an integrated microphone, internal and mobile storage options, interchangeable skids for stable pipe navigation, and a rechargeable lithium-ion battery providing up to four hours of operation.
