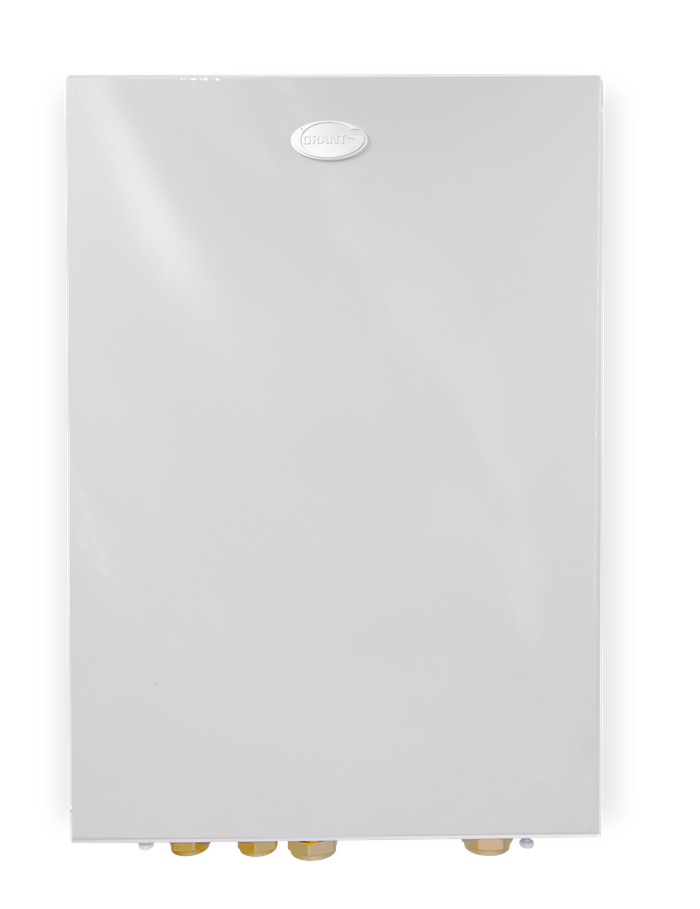

The EvoLink Smart Hybrid System Hub is an easy to install unit which combines an Aerona³ or Aerona 290 air source heat pump with most types of existing domestic heating systems including kerosene and HVO boilers, gas boilers, LPG boilers and modulating biomass boilers with space heating outputs of up to and including 28kW.

The EvoLink Smart, houses the hydraulics, including a combined mixing tank, boiler flow and return connections, heat pump flow and system flow connections, mixing PWM pump and temperature sensors and enables installers to fit a new Aerona³ heat pump or Aerona 290 heat pump to an existing heating system. The EvoLink provides installers with a solution to help their customers start a steady transition away from fossil fuels when a heat pump alone cannot meet a property’s entire space heating and hot water demands.

Features & benefits -

• *2 year guarantee (T&Cs apply)
• Innovative hybrid solution that is straightforward to install
• Designed to be installed with the Grant Aerona Smart Controller, working together to operate the heat pump as the main heat source with the existing boiler serving as an additional heat source
• Compatible for installation with existing S-plan and Y-plan control systems
• The Aerona Smart Controller’s interface displays heating & DHW demands, boiler & heat pump operation, as well as giving access to the main settings, live system data and diagnostics
• Manual override function available to operate the boiler only when required, for example for servicing and maintenance
• Uses weather compensation set via compensation curve parameters in Aerona Smart Controller to use the heat pump and, when required, the boiler, to achieve the desired flow temperature to satisfy space heating demand
• For hot water load, the EvoLink Smart provides an automatic hot water priority – the control system will use the heat pump to achieve the target flow temperature for the cylinder with the boiler only operated when required
• Supplied with a wall mounting plate for internal installation only
• The EvoLink is only compatible with sealed systems (a plate heat exchanger is required for open vented systems)
