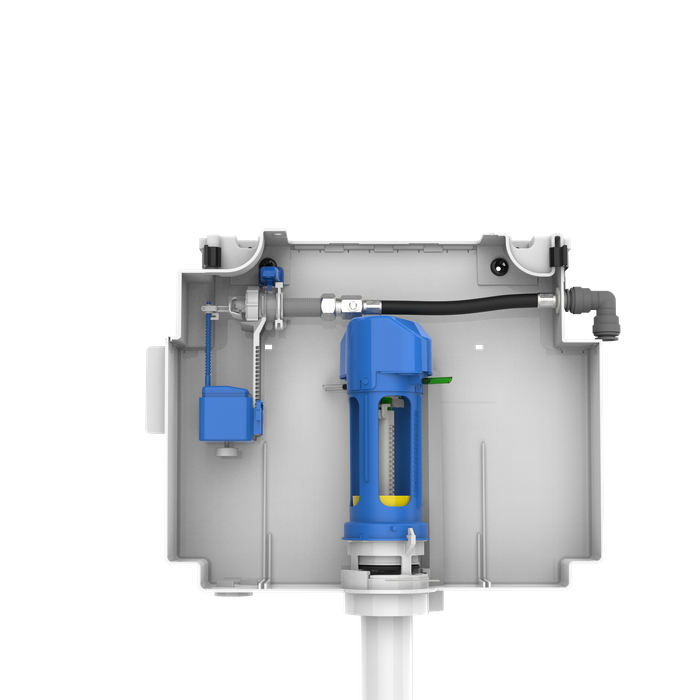

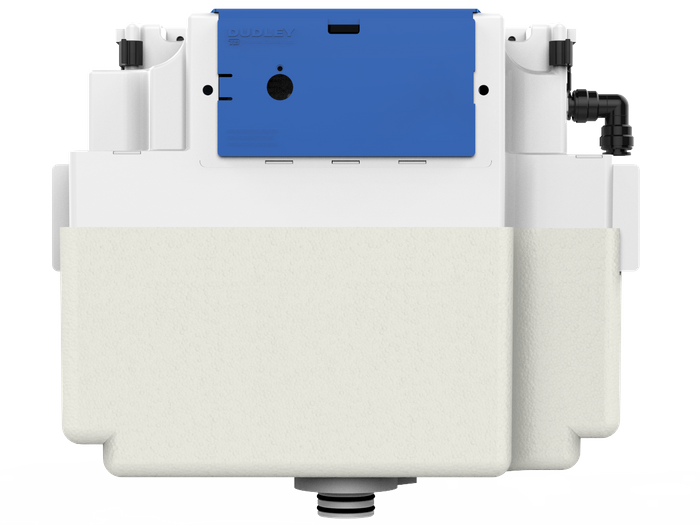

Dudley Vantage Concealed Cistern
)
)
Features
- 460mm [W] x 369mm [H] x 125mm [D]
- Supplied factory assembled
- Fitted with integral isolating valve and internal overflow warning
- Air tubes enable button, plate or sensor to be installed up to 250mm away from cistern
- Front and Top Access panels
- Compact dimensions enables the Dudley Vantage to fit neatly into furniture units as small as 500mm [W] x 200mm [D] x 800mm [H]
- Cistern assembly is WRAS approved
- Fitted with WRAS approved Hydroflo Side Inlet & Niagara Pneumatic Valve
- Side inlet
- Pushfit flushbend
- Unique cistern fixing brackets
- Fully compliant with UK Water Regulations
- Multiple specification options: Insulation Jacket, Single Flush, 73.5mm Button, Piazza Button, Royal Button, Oyster Plate, Reef Plate Coral Plate, Electroflo and Vantage cisterns are available with Cat 3 & Cat 5 backflow prevention
- For other variations please contact us
