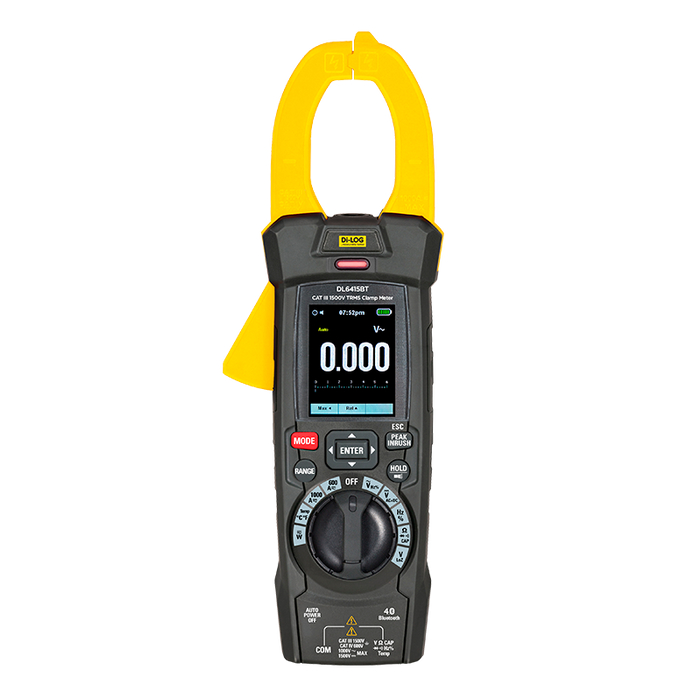

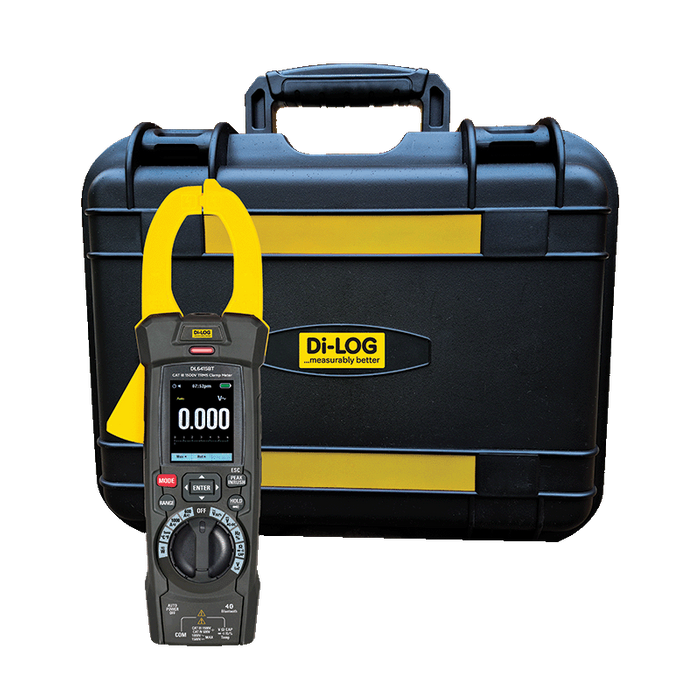

Di-LOG DL6415BT CAT III 1500V DC Clamp Meter
)
)
)
The Di-log DL6415 is a professional, solar-ready clamp meter designed to meet the demands of modern electrical and photovoltaic (PV) installations. Built with a CAT III 1500V DC / CAT IV 600V safety rating, it enables safe, reliable testing in high-voltage environments, making it ideal for solar installers, maintenance engineers and electrical contractors. True RMS measurement ensures accurate readings on both clean and distorted waveforms, delivering dependable performance across a wide range of AC and DC applications.
The DL6415 offers comprehensive measurement capability, including voltage up to 1500V DC, current up to 1000A AC/DC, and full power and energy analysis such as kW, kVA, kVAR and kWh. Integrated harmonic analysis allows users to assess power quality and identify distortion issues within electrical systems, while inrush current and peak capture functions provide valuable insight during equipment start-up and fault finding. LowZ (low impedance) mode helps eliminate ghost voltage, ensuring more reliable readings in complex circuits.
Designed for ease of use in the field, the DL6415BT features a large, full-colour display that provides clear visibility in all lighting conditions. Bluetooth connectivity enables seamless integration with a mobile app for real-time data monitoring and reporting, improving workflow efficiency and documentation. Housed in a robust, durable casing and powered by a rechargeable Li-ion battery, the DL6415BT is built for daily professional use, offering a versatile, all-in-one solution for electrical testing, maintenance and diagnostics in both standard and renewable energy environments.
