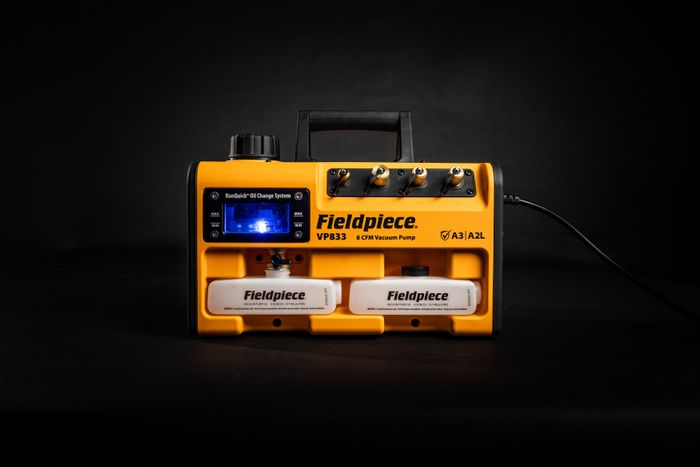

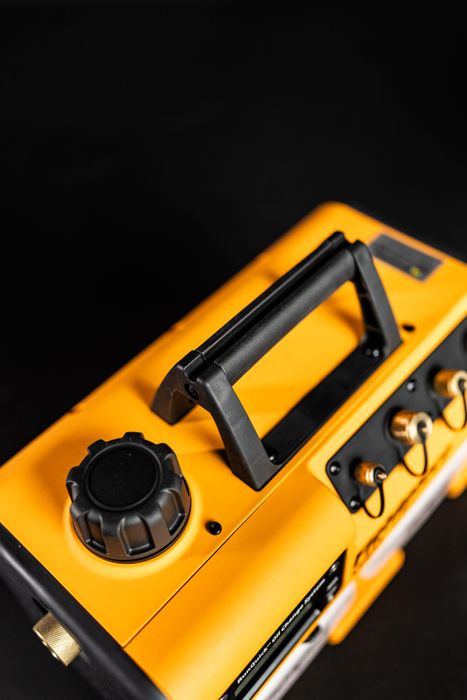

ATEX Certified 8CFM Vacuum Pump
)
)
)
- Flow Rate: 8CFM
- Ultimate Vacuum at Input Ports: 15 Microns
- For Use With: A3, A2L, and A1 Refrigerants
- Not for Use With: R-702, R-717
- Oil Capacity: 237ml
- Oil Compatibility: Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)
Fieldpiece part numbers: OIL8X3, OIL32, OIL128 - Oil Backlight: Blue LED
- Oil Drain: Ball valve

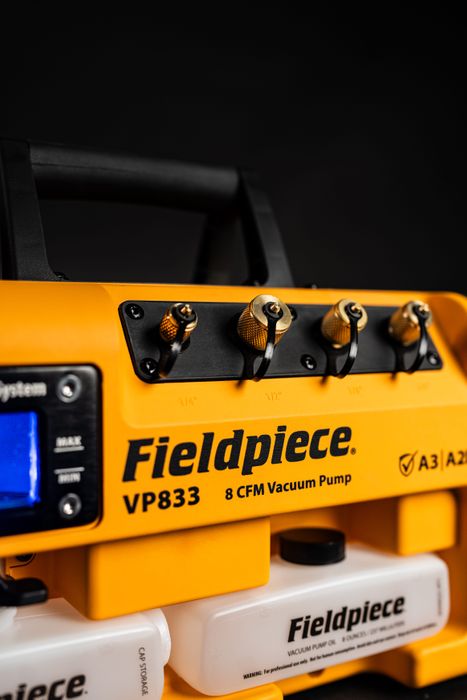

- Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2”
- Compressor: Rotary vane, two stage
- Motor: 3/4 HP Brushless DC
- RPM: 2500
- Power Source: 110 VAC 50 Hz/ 230 VAC 50 Hz
- Nominal Current Draw: 5A @ 110 VAC / 2A @ 230 VAC
- Nominal Power: 550W @ 110V, 460W @ 230V
- Unit Ingress Protection Rating: IP20
- Dimensions: 201 mm x 296 mm x 406 mm
- Weight Empty: 13 kg
- Operating Environment: 0°C to 40°C
