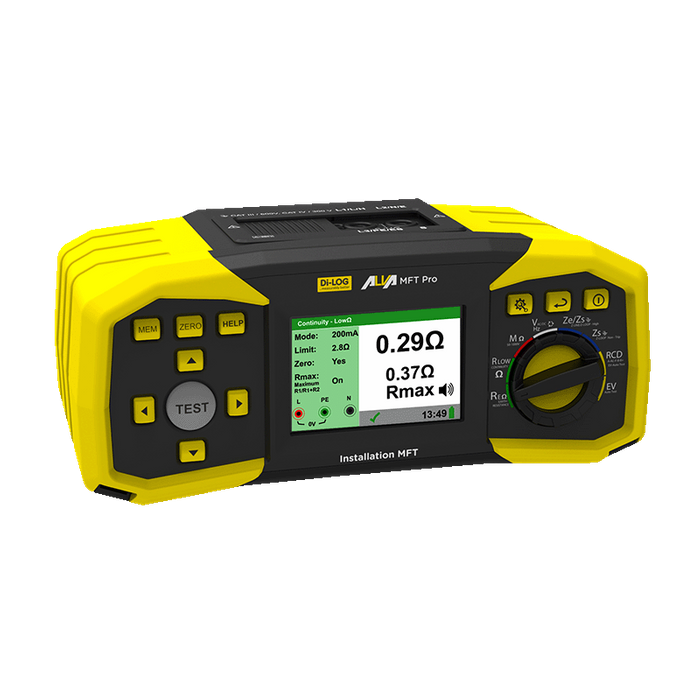

Equipped with a vivid full-colour TFT display, this multifunction tester provides interactive pass/fail settings and supports a full range of RCD types, including AC, A, B, B+, EV, and F. It features automated Continuity & Earth Loop Auto Start, a secondary display for recorded results, and intelligent 2/3 wire high-current loop detection, eliminating manual selection errors.

Expanding its advanced testing capabilities, the ALVA MFT Pro EV includes 4mA continuity testing, which is ideal for inductive loads such as motor windings. Its Zmax and Imax tracking enables maximum recorded Earth Loop Impedance and Perspective Short Circuit Current (PSC) analysis, ensuring optimal safety and performance assessments.

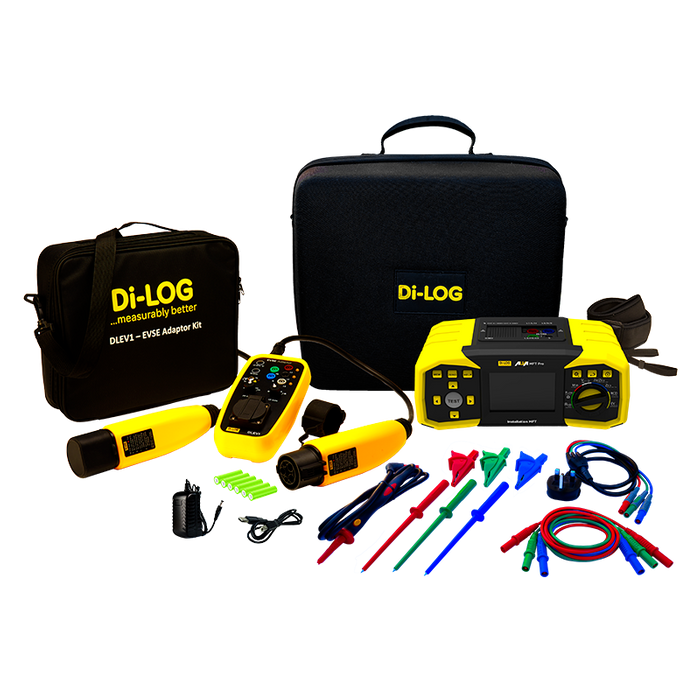

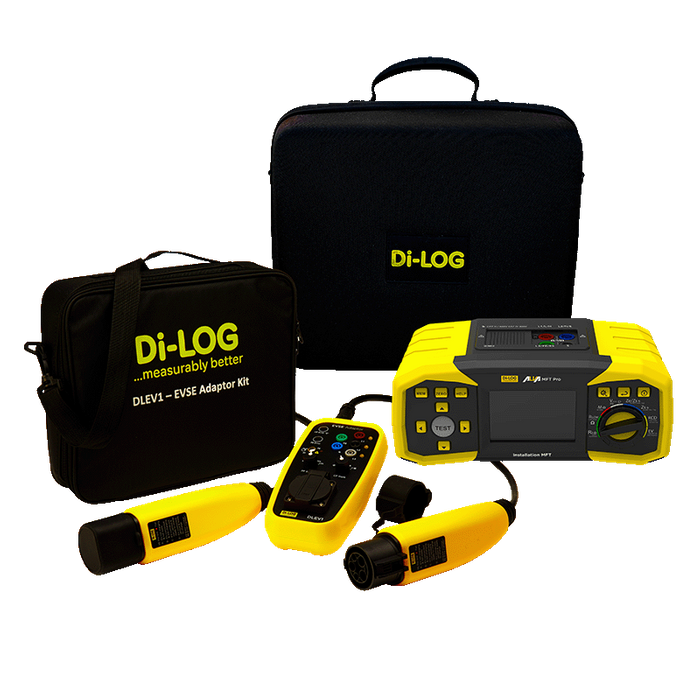

Di-LOG ALVA MFT Pro EV Multifunction Tester Kit – Key Features:

• Full-Colour TFT Display: Provides a high-contrast screen with interactive pass/fail settings for enhanced user experience.
• Comprehensive RCD Testing: Supports types AC, A, B, B+, EV and F, ensuring compatibility with a wide range of installations, including EV charge points.
• Automated Continuity & Earth Loop Auto Start: Simplifies testing with a secondary display for recorded results, improving efficiency.
• Advanced Loop Testing with Intelligent Detection: The ALVA MFT Pro EV features Intelligent 2/3 Wire High-Current Loop Detection, which automatically identifies whether a 2-wire or 3-wire Loop/PSCC measurement is being conducted, eliminating manual selection errors.
•  RCD-LOC+ Dynamic Non-Trip Loop Testing: this latest Xpert Loop Technology delivers high-accuracy low-current Earth Loop measurements with an adjustable test current feature, optimising test precision based on your RCD current. This ensures reliable loop impedance testing while maintaining maximum safety and accuracy in all environments.
• Advanced Fault Detection & Customisation: Offers variable RDC test feature, 1A RCD testing, and 4mA continuity testing, making it ideal for motor windings and inductive loads.
• EV Auto Test Sequence: Automates EV Charger Installation Verification with Earth Loop Testing, RDC-PD/MD Testing, AC RCD Testing, Ramp Testing, and Voltage Verification
• Integrated DLEV1 Charge Point Adaptor Kit: Enables full functional testing of Mode 3 EV charging stations, ensuring charge point performance and safety.
• Control Pilot & Protective Earth Testing: DLEV1 Verifies Control Pilot (CP) status, detects CP Error E, monitors PE Error, and performs a PE Pre-Test for added safety in EV charger installations.
• Earth Resistance Testing: Supports 3 or 4 pole methods (with optional accessory kit) for precise ground integrity assessments.
• Built-in Rechargeable Battery Charger: The ALVA MFT Pro EV is powered by six high-power NiMH rechargeable batteries, ensuring extended operation without the hassle of frequent battery replacements. The included charge plug allows convenient recharging, keeping your tester ready for use at all times.
• Data memory: The built-in memory storage enables users to store up to 1,000 recorded measurements, ensuring efficient data management, traceability, and seamless workflow integration
