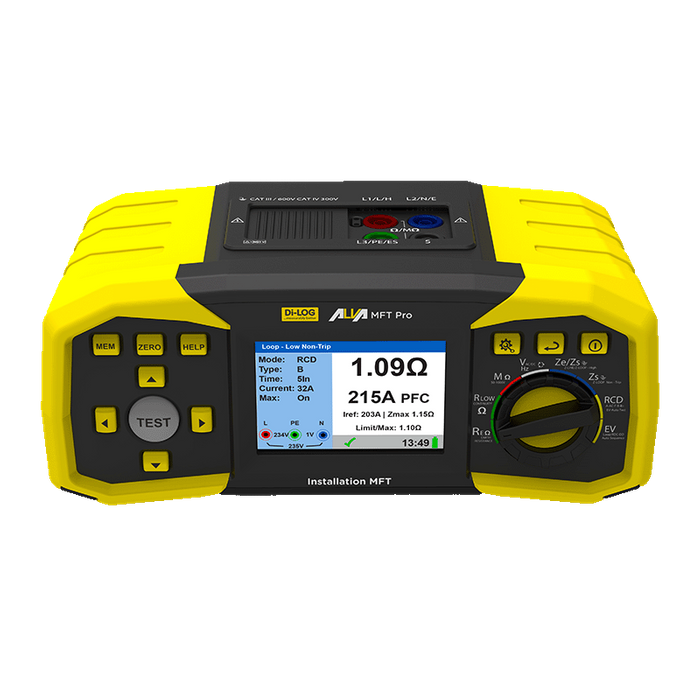

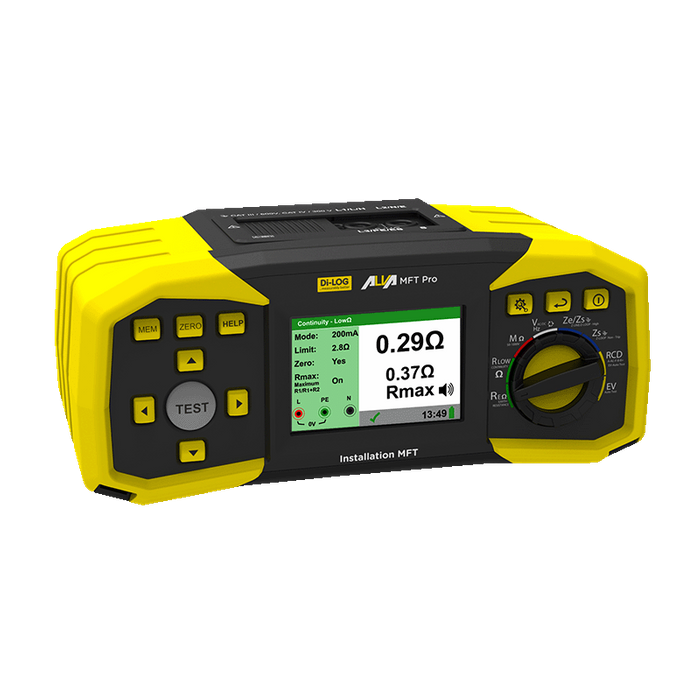

Equipped with a vibrant full-colour TFT display, this multifunction tester provides interactive pass/fail settings and supports a full range of RCD types, including AC, A, B, B+, EV and F. It features automated Continuity & Earth Loop Auto Start, a secondary display for recorded results, and intelligent 2/3 wire high-current loop detection, eliminating the need for manual selection.

Taking functionality further, the ALVA MFT Pro introduces 15mA continuity testing, ideal for inductive loads such as motor windings. The inclusion of Zmax and Imax tracking allows for maximum recorded Earth Loop Impedance and Perspective Short Circuit Current (PSC) analysis, ensuring optimal safety and performance assessment.

Di-LOG ALVA MFT Pro – Installation Multifunction Tester – Key Features:

• Full-Colour TFT Display: High-contrast screen with interactive pass/fail settings for intuitive operation.
• Comprehensive RCD Testing: Supports all major RCD types, including AC, A, B, B+, EV, F, and 6mA RDC-PD/MD, catering to a wide range of installations, including EV chargers.
• Automated Continuity & Earth Loop Auto Start: Streamlines testing with secondary display for recorded results, improving efficiency and workflow
• Advanced Loop Testing with Intelligent Detection: The ALVA MFT Pro EV features Intelligent 2/3 Wire High-Current Loop Detection, which automatically identifies whether a 2-wire or 3-wire Loop/PSCC measurement is being conducted, eliminating manual selection errors.
•  RCD-LOC+ Dynamic Non-Trip Loop Testing: this latest Xpert Loop Technology delivers high-accuracy low-current Earth Loop measurements with an adjustable test current feature, optimising test precision based on your RCD current. This ensures reliable loop impedance testing while maintaining maximum safety and accuracy in all environments.
• Advanced Fault Detection & Customisation: Offers variable RDC test feature, 1A RCD testing, and 4mA continuity testing, making it ideal for motor windings and inductive loads.

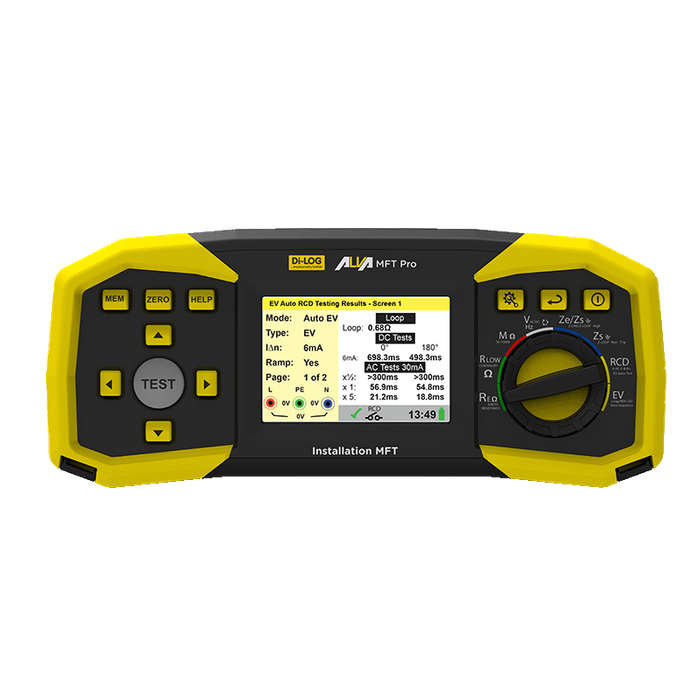

• EV Auto Test Sequence: Automates EV charger verification, incorporating Earth Loop Test, RDC-PD/MD Test, AC RCD Test, Ramp Test, and Voltage Verification in a streamlined workflow
• Earth Resistance Testing: Supports 3 or 4 pole methods with optional accessory kit for comprehensive ground integrity testing.
• Zmax and Imax Tracking: Records maximum Earth Loop Impedance and Perspective Short Circuit Current (PSC), ensuring precise electrical safety assessments.
• Built-in Fuse Tables: Displays maximum permitted Zs Loop values when carrying out Earth Loop Impedance testing, helping ensure compliance with industry safety standards.
• Built-in Rechargeable Battery Charger: The ALVA MFT Pro EV is powered by six high-power NiMH rechargeable batteries, ensuring extended operation without the hassle of frequent battery replacements. The included charge plug allows convenient recharging, keeping your tester ready for use at all times.
• Data memory: The built-in memory storage enables users to store up to 1,000 recorded measurements, ensuring efficient data management, traceability, and seamless workflow integration
