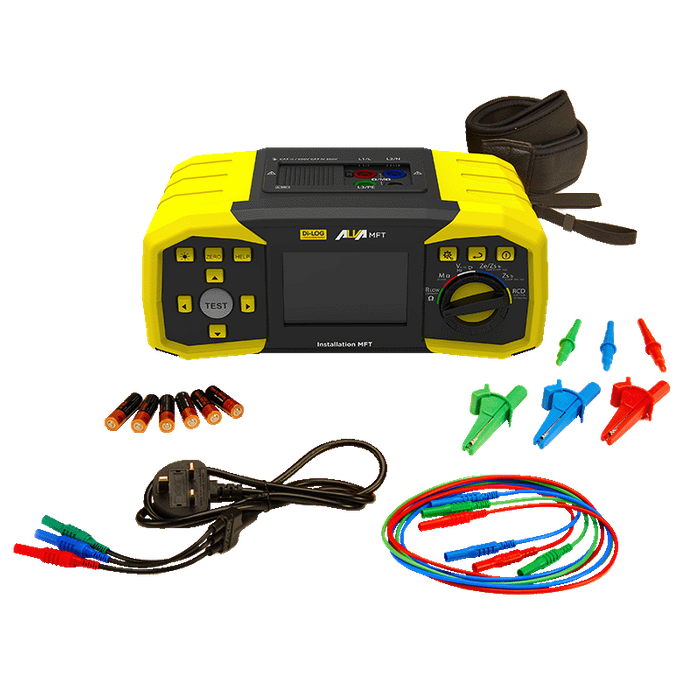

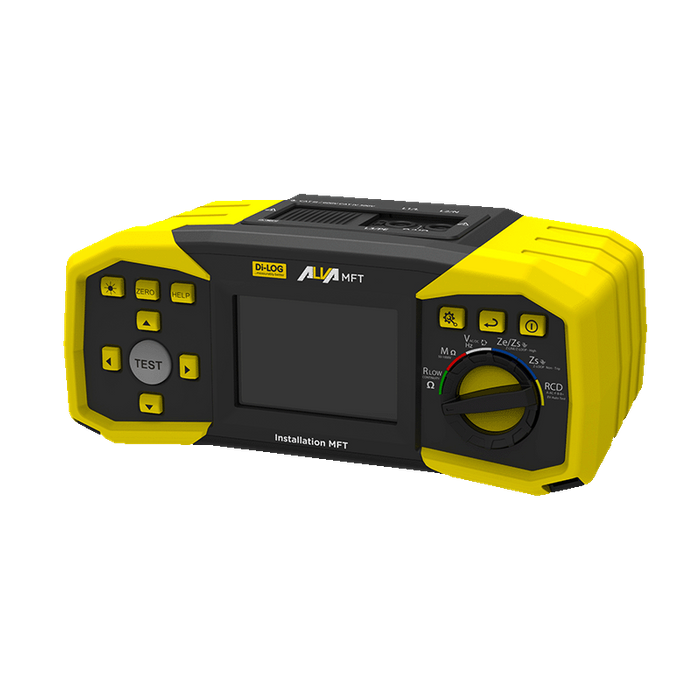

Designed for accuracy and ease of use, the ALVA MFT features a vivid full-colour TFT display with interactive controls, allowing users to set pass/fail conditions effortlessly. It supports a full range of RCD types, including AC, A, B, B+, EV and F, making it a versatile solution for modern electrical installations.

The ALVA MFT Installation Multifunction Tester simplifies testing with automated Continuity & Earth Loop Auto Start, accompanied by a secondary display for recorded results. Its intelligent 2/3 wire high-current loop detection eliminates the need for manual selection, automatically identifying whether a 2-wire or 3-wire Loop/PSCC measurement is being conducted.

Di-LOG ALVA MFT Multifunction Tester Key Features

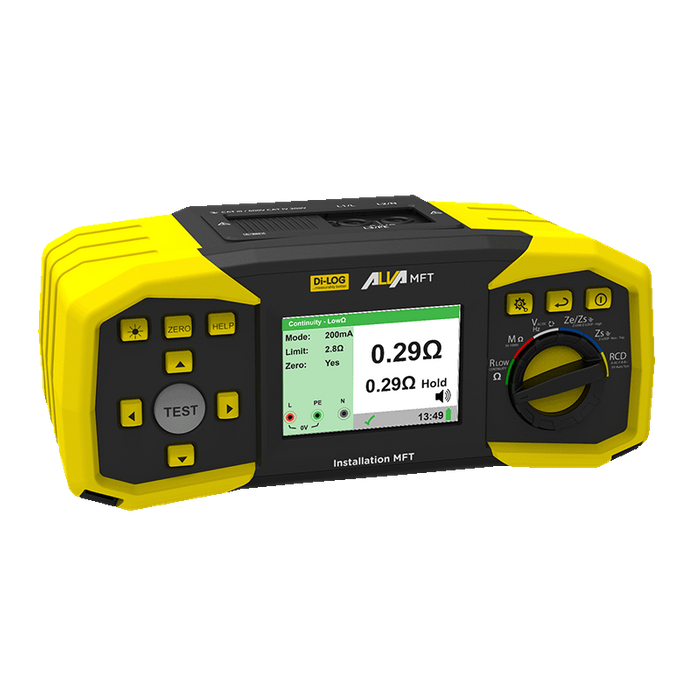

• Full-Colour TFT Display: High-contrast screen with interactive pass/fail settings for intuitive operation.
• Fully Automated: Continuity & Earth Loop Auto Start with secondary display for recorded results.
• Intelligent 2/3 Wire High-Current Loop Detection: Automatically identifies 2-wire or 3-wire Loop/PSCC measurement, eliminating manual selection errors.
• Dynamic Non-Trip Loop: RCD-LOC+, our latest Xpert Loop Technology delivers high-accuracy, low-current Earth Loop with an adjustable test current feature to optimise the test accuracy based on your RCD current.
• Full Range RCD Type: required for fault finding supporting – AC, A, B, B+, 6mA EV and F
• Variable RDC Test: allows users to set custom mA values when required.
• Insulation Test with Bargraph: with selectable voltages of 50V, 100V, 250V, 500V & 1000V with adjustable pass/fail values
• 3-Phase: Line-Line Impedance with dynamic phase rotation indication.
• Rechargeable Capability (Optional Kit Required): The ALVA MFT includes an inbuilt charging facility when used with the optional NiMH battery and charge lead kit, allowing convenient charging and longer operation without regular battery changes.
• On-screen Help: a visual aid to assist test lead configuration and instruction
