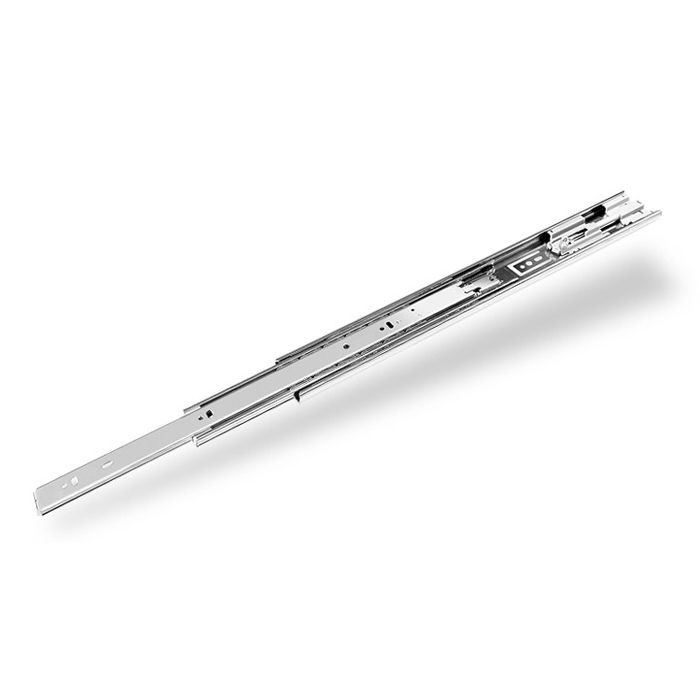

AD52 Heavy Duty Silent Soft Close Slide
)
【Specifications】
| • | Nominal length: 300mm - 600mm (12" - 24") |
| • | Travel: Refer to Slide Travel column below |
| • | Side Space: 13mm (+0.5mm/-0.3mm) |
| • | Height: 37.2mm (1.46") |
| • | Max. Loading: 23kg (50lb) |
| • | Mount: Side-mount type |
| • | Disconnects: Disconnects with release lever |
| • | Finish: Clear zinc or black |
| • | Material: Cold rolled steel |
| ※ | Note: Max.load rating based on 450mm(17.8") slides |
