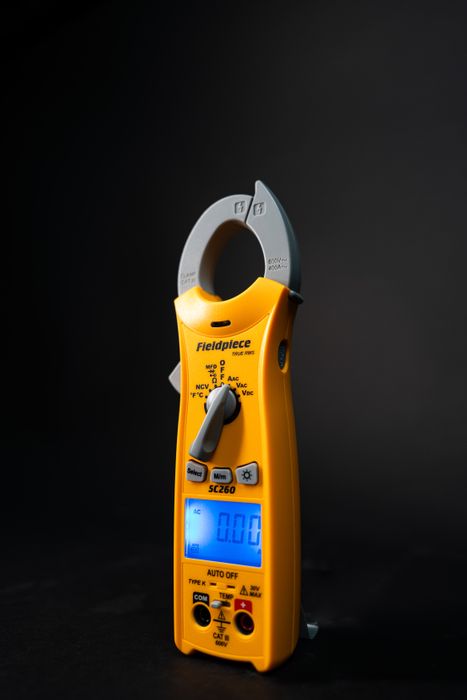

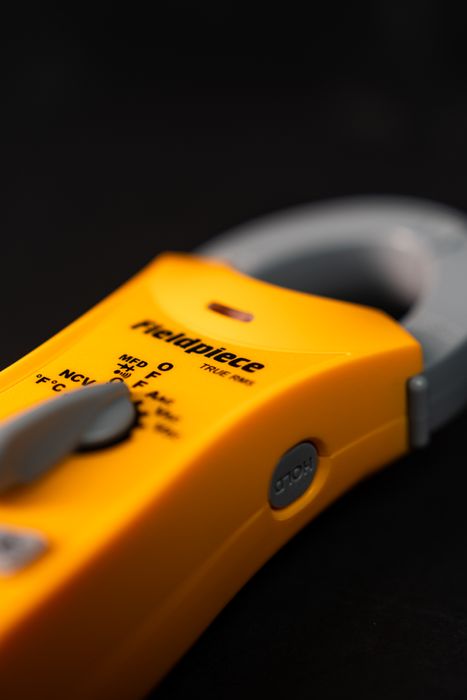

400A Clamp Meter Compact
)
)
)
- Display: 4000 count
- Backlight: 5 minute duration with auto-off. Blue color. SC260 only
- Overrange: (OL) or (-OL) is displayed
- Measurement rate: 3 times per second, nominal
- Zero: Automatic
- Operating environment: 0°C to 50°C at <70% relative humidity
- Storage temperature: -20°C to 60°C, 0 to 80% RH (with battery removed)
- Accuracy: Stated accuracy @ 23°C±5°C, <75%RH
- Temperature coefficient: 0.1 x (specified accuracy) per °C [0°C to 19°C, 28°C to 50° C]
- APO (Auto Power Off): Approx. 30 minutes
- Power: 9V, NEDA 1604A, IEC 6LR61 9V alkaline battery
- Battery life: 150 hours typical alkaline
- Low battery indication: Battery icon blinks and “LO.bt” is displayed when the battery voltage drops below the operating level
- Dimensions: 205.5mm(H) x 67.4mm(W) x 45.1mm(D)
- Weight: Approx. 265g including battery
- Altitude: Up to 2000m
- Overload protection: 600 VDC or 600VAC RMS unless otherwise stated
- Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIII 600V or above

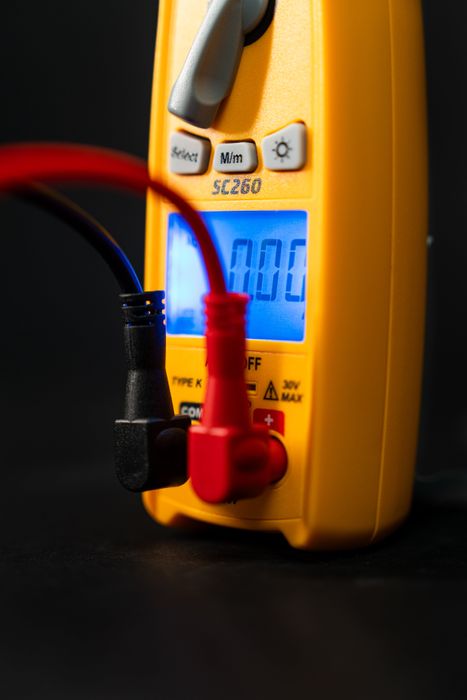

- Included test leads are gold- plated and have removeable safety caps
