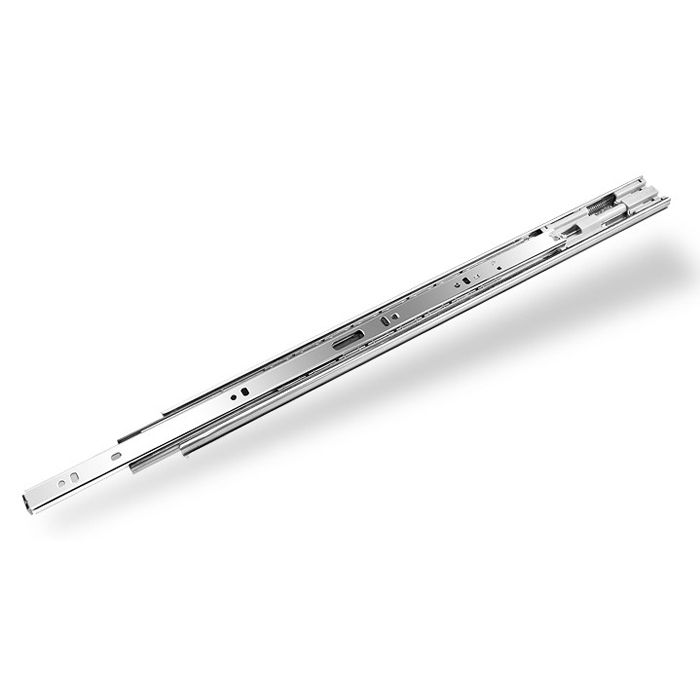

3M52 Medium Duty Silent Soft Close Slide
)
【Specifications】
| • | Nominal Length: 302mm - 702mm (12" - 28") |
| • | Travel: Refer to Slide Travel column below |
| • | Side Space: 13mm (+0.5mm/-0.3mm) |
| • | Height: 45.6mm (1.80") |
| • | Max. Loading: 45kg (100lb) |
| • | Mount: Side-mount type |
| • | Disconnects: Disconnects with release lever |
| • | Finish: Clear zinc or black finish |
| • | Material: cold rolled steel |
| ※ | Note: Max.load rating based on 450mm(17.8") slides |
