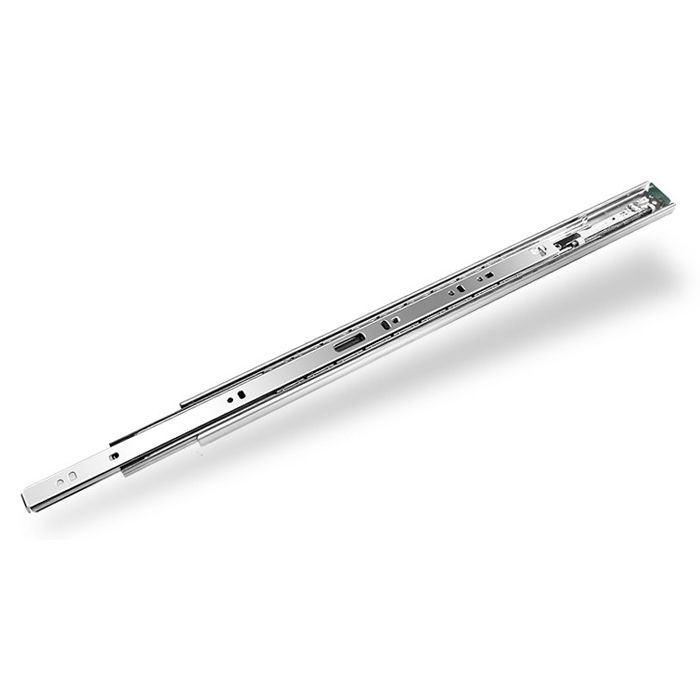

3J89 Light Duty Push Open Slide
)
【Specifications】
| • | Nominal Length: 250mm - 700mm (10" - 28") |
| • | Travel: Refer to Slide Travel column below |
| • | Side Space: 13mm (+0.5mm/-0.3mm) |
| • | Height: 37.2mm (1.46") |
| • | Max. Loading: 34.5kg (75lb) |
| • | Mount Type: Side-mount |
| • | Disconnect: Yes, with release lever |
| • | Finish: Clear zinc or black |
| • | Material: cold rolled steel |
