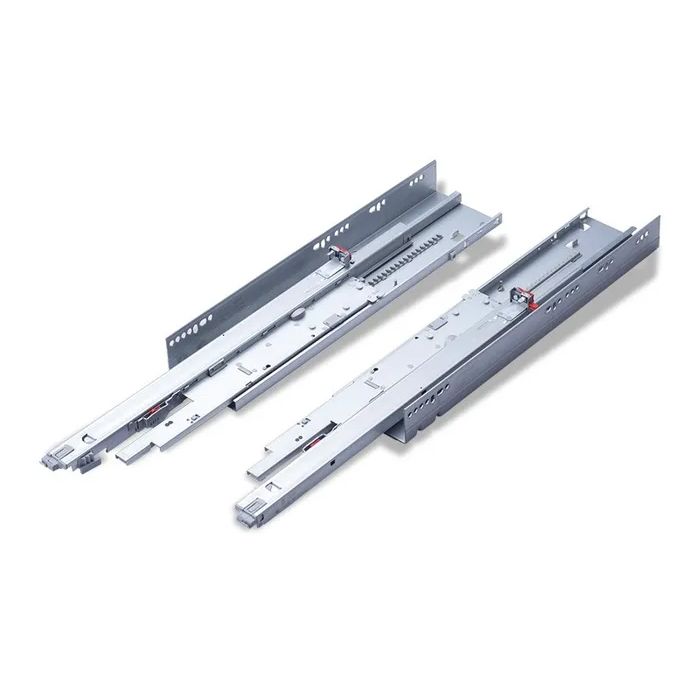

1G86 Push open+Soft Close SIMLEAD Undermount Slides (40kg), Drawer Side Thickness: 19mm(3/4")
)
【Specifications】
| • | Nominal Length: 250 - 600mm |
| • | Travel: Full extension |
| • | Maximum Drawer Side Thickness: 19mm (3/4") |
| • | Max. Loading: 40kg (88lb) |
| • | Mount Type: Undermount |
| • | Material: galvanized steel |
| Adjustments on Slides | |
| • | Height: Up 3.5mm |
| • | Depth: In 2.5mm/ Out 2.5mm |
| • | Tilt: +/-1.5mm |
| Locking Device Adjustment | |
| • | Slide: L 1.5mm/ R 1.5mm |
